2020 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Drive Pinion: Installation

  1. Adjust backlash and tooth contact of the hypoid gear set. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>FRONT DIFFERENTIAL>ADJUSTMENT .

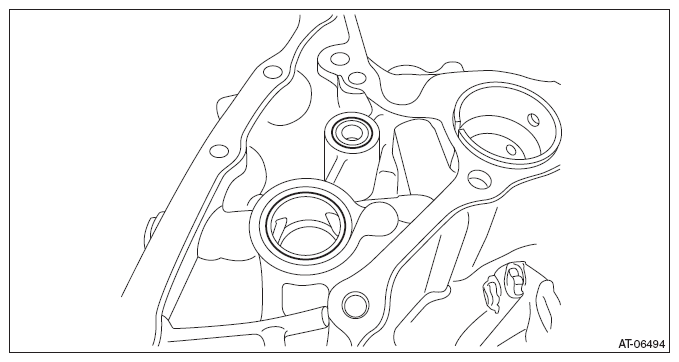

  2. Install a new O-ring to converter case.
    NOTE: Apply CVTF to the O-rings.
    G08318083Courtesy of SUBARU OF AMERICA, INC.

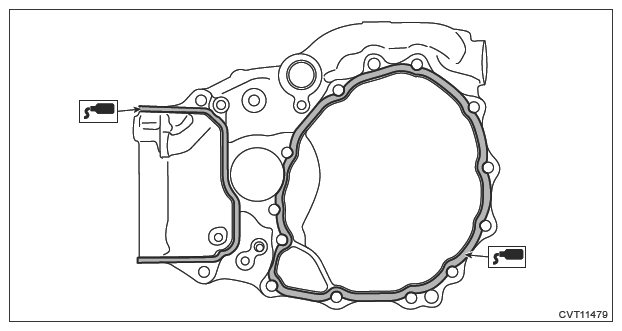

  3. Apply liquid gasket to the mating surface of the drive pinion retainer as shown in the figure, and temporarily install the drive pinion retainer.
    NOTE:
    • Before applying liquid gasket, degrease the old liquid gasket seal surface of the drive pinion retainer and converter case.
    • Install within 5 min. after applying liquid gasket.

    Liquid gasket:

    THREE BOND 1215B or equivalent

    G13225955Courtesy of SUBARU OF AMERICA, INC.

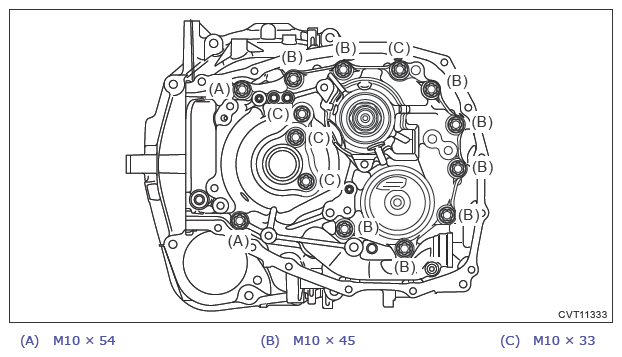

  4. Tighten the bolt using the ST.

    Preparation tool:

    ST: SOCKET (E20) (18270KA020)

    Tightening torque:

    43 N.m (4.4 kgf-m, 31.7 ft-lb)

    G13592303Courtesy of SUBARU OF AMERICA, INC.
  5. Install the forward clutch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>FORWARD CLUTCH>INSTALLATION .
  6. Install the reverse brake. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>REVERSE BRAKE>INSTALLATION .
  7. Install the primary pulley, secondary pulley and variator chain. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>PRIMARY PULLEY AND SECONDARY PULLEY>INSTALLATION .
  8. Install the reduction drive gear. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>REDUCTION DRIVE GEAR>INSTALLATION .
  9. Install the transmission case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION CASE>INSTALLATION .
  10. Install the transmission control device. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION CONTROL DEVICE>INSTALLATION .
  11. Install the oil strainer and oil pan. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>OIL PAN>INSTALLATION .
  12. Install the reduction driven gear. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>REDUCTION DRIVEN GEAR>INSTALLATION .
  13. Install the parking pawl. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>PARKING PAWL>INSTALLATION .
  14. Install the transfer driven gear. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSFER DRIVEN GEAR>INSTALLATION .
  15. Install the transfer clutch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSFER CLUTCH>INSTALLATION .
  16. Install the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE>INSTALLATION .
  17. Install the electric oil pump. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>ELECTRIC FLUID PUMP>INSTALLATION .
  18. Install the inhibitor switch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>INHIBITOR SWITCH>INSTALLATION .
  19. Install the secondary speed sensor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>SECONDARY SPEED SENSOR>INSTALLATION .
  20. Install the primary speed sensor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>PRIMARY SPEED SENSOR>INSTALLATION .
  21. Install the turbine speed. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TURBINE SPEED SENSOR>INSTALLATION .
  22. Install the transmission harness. Refer to CONTINUOUSLY VARIABLE TRANSMISSION(TR580))>TRANSMISSION HARNESS>INSTALLATION .
  23. Install the control valve body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CONTROL VALVE BODY>INSTALLATION .
  24. Install the air breather hose. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>AIR BREATHER HOSE>INSTALLATION .
  25. Install the transmission body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580))>TRANSMISSION ASSEMBLY>INSTALLATION .
