Control Valve Body: Installation
- Check the control valve body for foreign matter adhesion.
- Set new O-rings.NOTE: Apply CVTF to the O-rings.
- Install the control valve body.
- Set the control valve body to the transmission body.CAUTION: Perform installation so that the O-ring is not displaced.

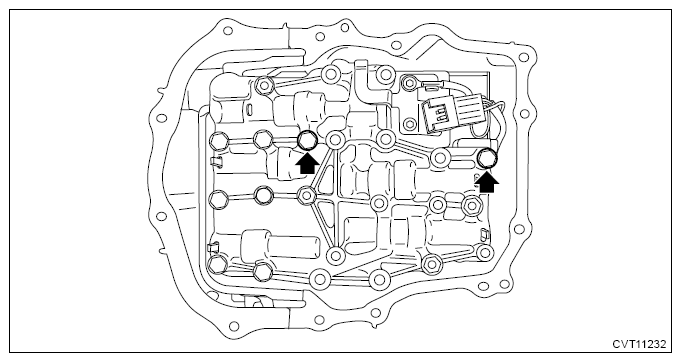

- Temporarily tighten the bolt (silver).
- Attach the bolt (black).
Tightening torque:
9 N.m (0.9 kgf-m, 6.6 ft-lb)

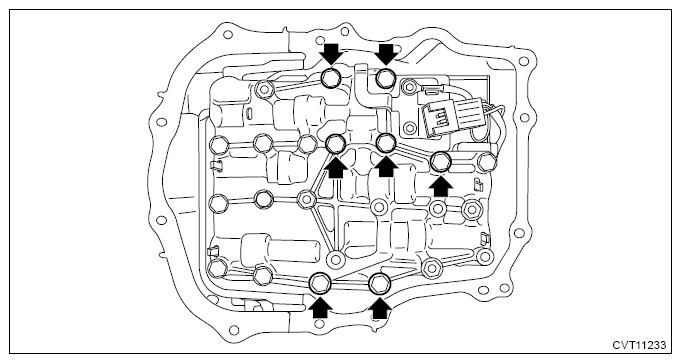

- Tighten the bolt (silver).
Tightening torque:
9 N.m (0.9 kgf-m, 6.6 ft-lb)
- Set the control valve body to the transmission body.

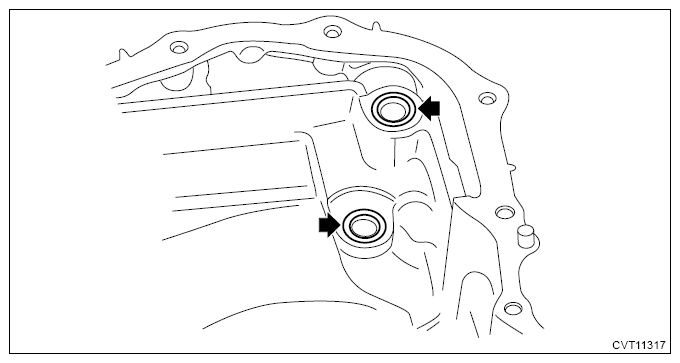

- Install a new O-ring to the transmission harness.NOTE: Apply CVTF to the O-rings.
- Temporarily attach the transmission harness to the valve cover.

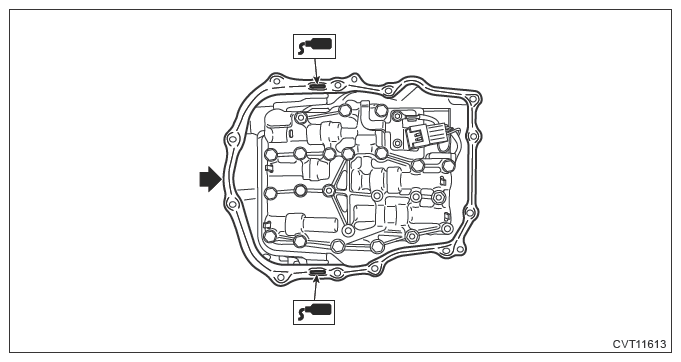

- Set the gasket to the transmission body, and apply the liquid gasket to the oblong hole.NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surface of the transmission body and valve cover.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:
THREE BOND 1215B or equivalent
- Connect the connector to the control valve body.
- Install the valve cover.CAUTION: Be careful not to catch the ST (SHEET SPECIAL TOOL).
Tightening torque:
8 N.m (0.8 kgf-m, 5.9 ft-lb)
- Tighten the bolt which holds the transmission harness.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Remove the ST (SHEET SPECIAL TOOL).
- Install the throttle body. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>THROTTLE BODY>INSTALLATION .
- Install the clip, and connect the ground terminal.
Tightening torque:
14 N.m (1.4 kgf-m, 10.3 ft-lb)
- Install the ground cord and the air breather hose stay.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Connect the transmission harness connector to the engine wiring harness.
- Install the TCM. CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION CONTROL MODULE (TCM)>INSTALLATION
- Install the air intake boot. Refer to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
- Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Check the amount of CVTF. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>INSPECTION .
- Perform [Clear AT learning value] and [AT learning mode] using the Subaru Select Monitor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>AT LEARNING .
