Transmission Case: Installation

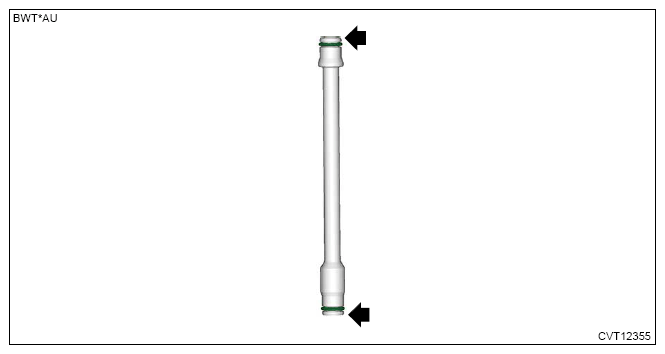

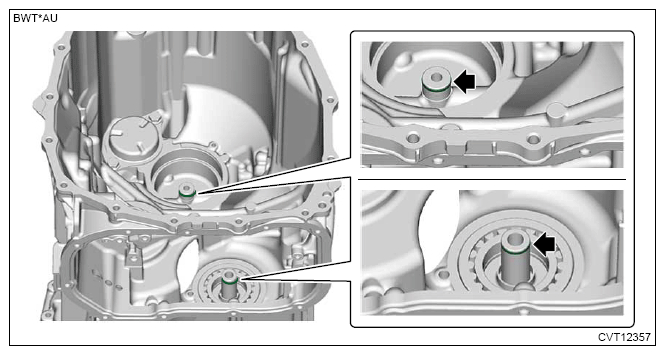

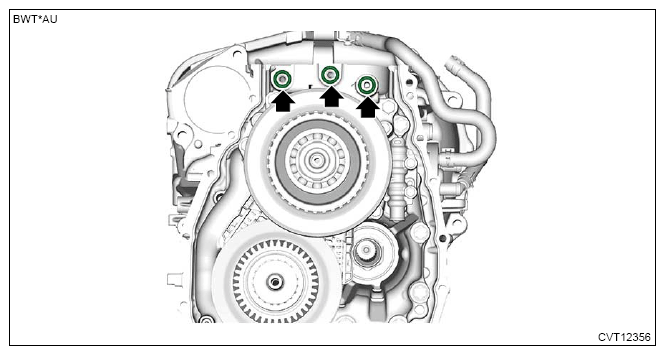

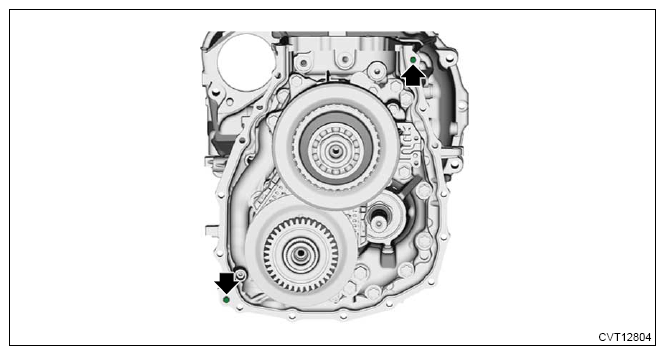

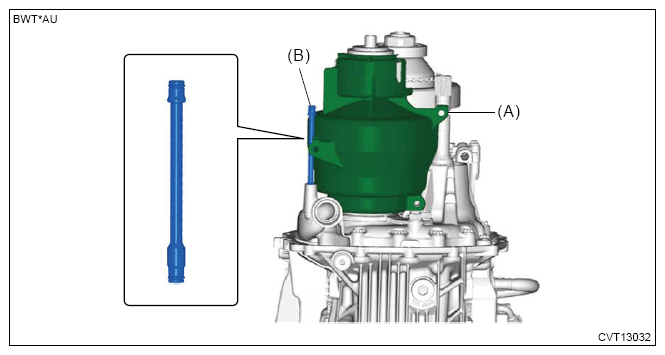

NOTE:

When attached on the transmission case side, install on the converter case side.

Courtesy of SUBARU OF AMERICA, INC.

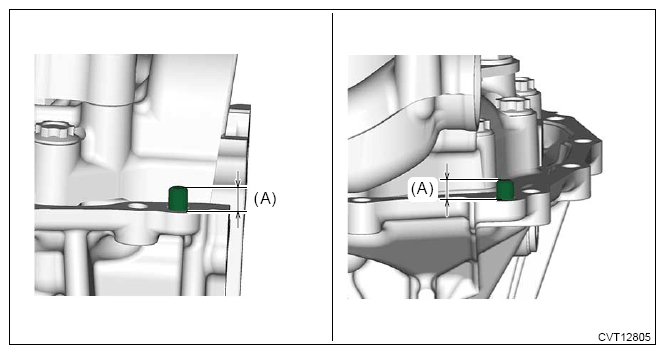

Specification:

8.5 - 9.5 mm (0.33 - 0.37 in)

Courtesy of SUBARU OF AMERICA, INC.

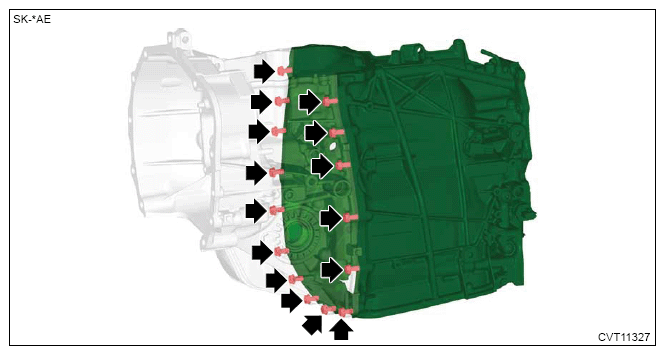

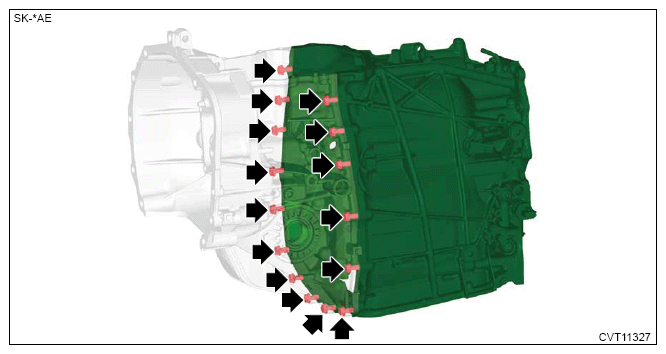

1. Install the transmission case.
   NOTE:

   • Do not apply liquid gasket.
   • Do not install the reduction drive gear shim and bearing race.
   • Do not install the seal ring.

   Tightening torque:

   22 N.m (2.2 kgf-m, 16.2 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

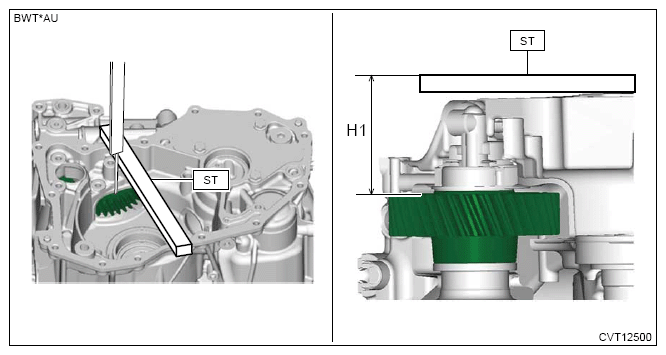

2. Using the ST, measure the height "H1" from the ST end face to the reduction drive gear end face.

   Preparation tool:

   ST: GAUGE (499575400)

   Courtesy of SUBARU OF AMERICA, INC.

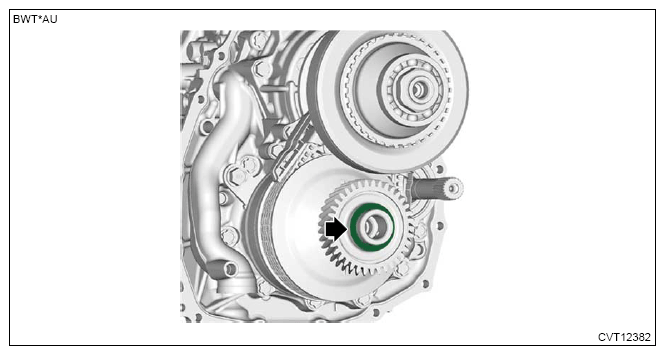

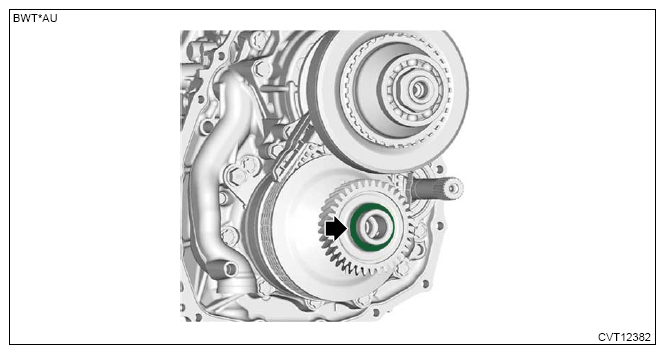

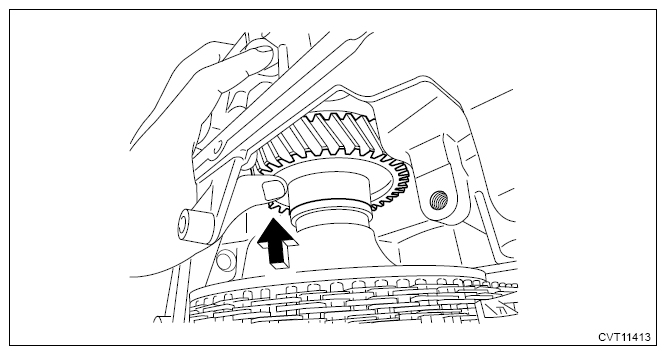

3. Raise and hold the reduction drive gear.

   Courtesy of SUBARU OF AMERICA, INC.

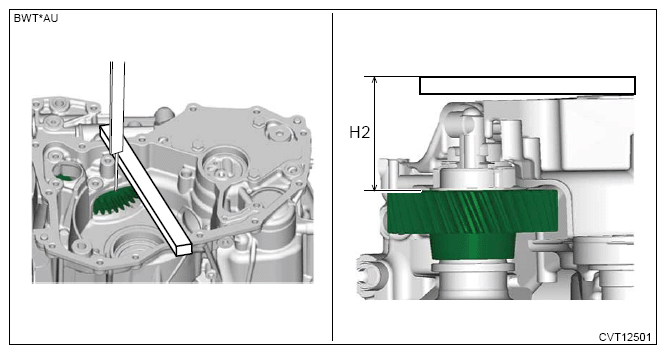

4. Measure the height "H2" from the ST end face to the reduction drive gear end face.

   Courtesy of SUBARU OF AMERICA, INC.

5. Using the following calculation, select appropriate thickness "T" of the reduction drive gear shim.
   NOTE:

   Adjust using 1 - 3 pieces.

   T = H1 - H2 - 0.05 - 0.25 mm (0.002 - 0.010 in)

   T	Reduction drive gear shim thickness mm (in)
   H1	Measured value (mm (in)) of step (2)
   H2	Measured value (mm (in)) of step (4)
   0.05 - 0.25 mm (0.002 - 0.010 in)	Clearance specification

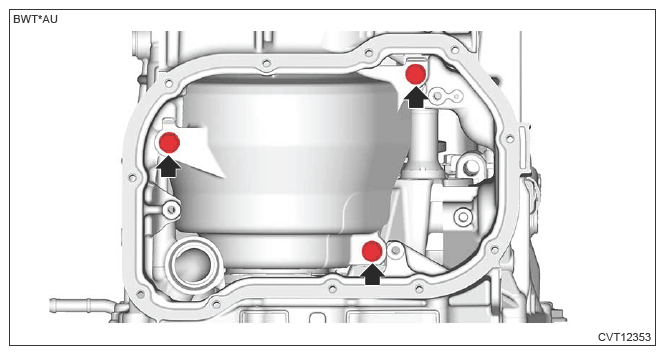

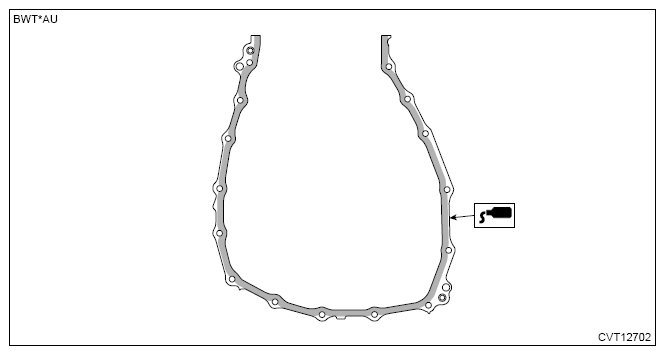

Liquid gasket:

THREE BOND 1216J or equivalent

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

22 N.m (2.2 kgf-m, 16.2 ft-lb)

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
