Control Valve Body: Installation
- Check the control valve body for foreign matter adhesion.

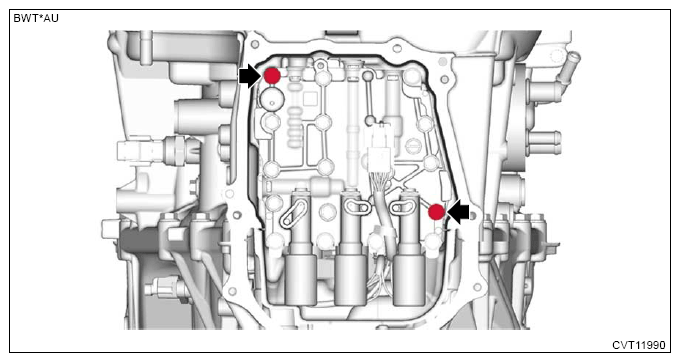

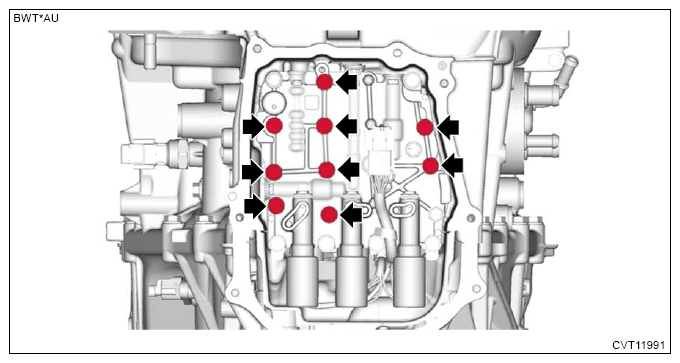

- Install the control valve body.
- Install a new O-ring to the transmission harness.NOTE:
Apply CVTF to the O-rings.
- Temporarily attach the transmission harness to the valve cover.
- Install a new gasket to the valve cover.

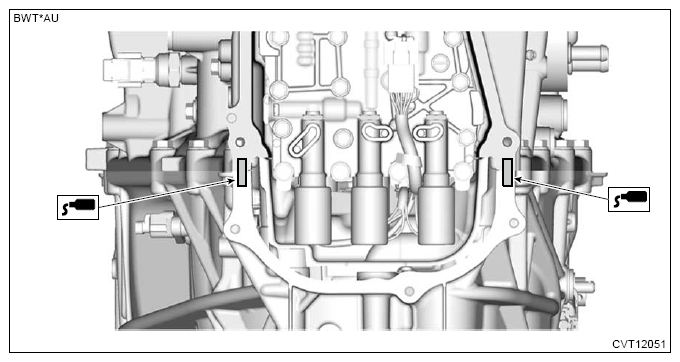

- Apply liquid gasket to the area shown in the figure.NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surface of the transmission body and valve cover gasket.
- Install within 5 min. after applying liquid gasket.
Preparation items:
Liquid gasket: THREE BOND 1216J or equivalent

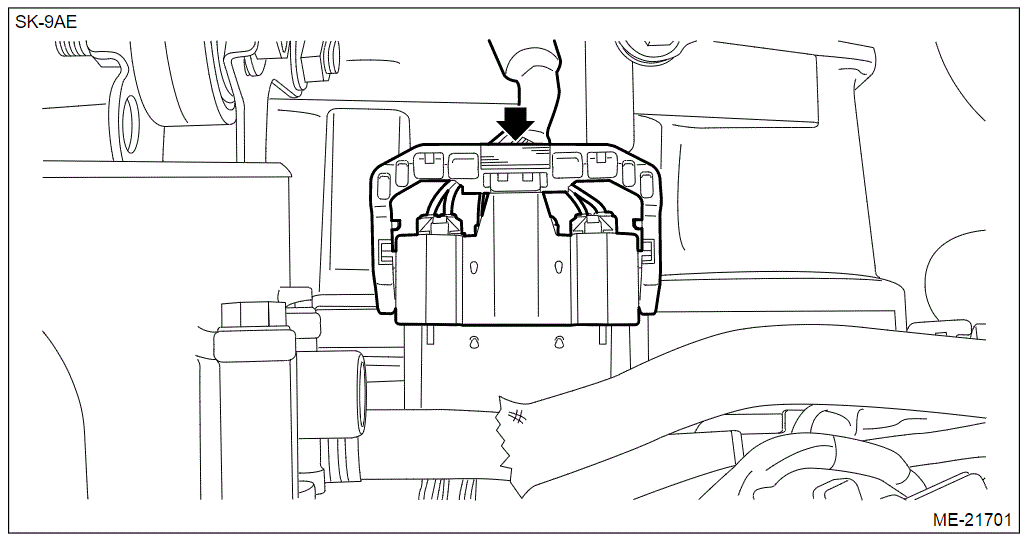

- Connect the connector to the control valve body.
- Temporarily attach the valve cover.

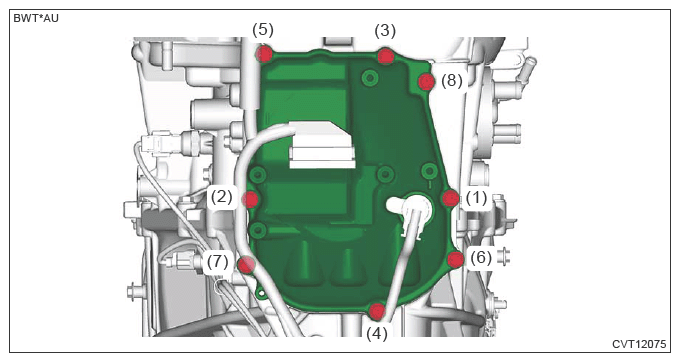

- Tighten the bolts in the numerical order as shown in the figure.CAUTION:
Be careful not to catch the ST (SHEET SPECIAL TOOL).
Tightening torque:
8 N.m (0.8 kgf-m, 5.9 ft-lb)
- Tighten the bolt which holds the transmission harness.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Remove the ST (SHEET SPECIAL TOOL).
- Install the throttle body. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>THROTTLE BODY>INSTALLATION .
- Install the clip which holds the transmission harness.
- Install the air breather hose stay.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Connect the transmission harness connector to the engine wiring harness.
- Install the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION CONTROL MODULE (TCM)>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Check the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>INSPECTION .
- Perform the [Clear AT learning value] and [AT learning mode] using Subaru Select Monitor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>AT LEARNING .
