2022 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Transmission Control Device: Installation

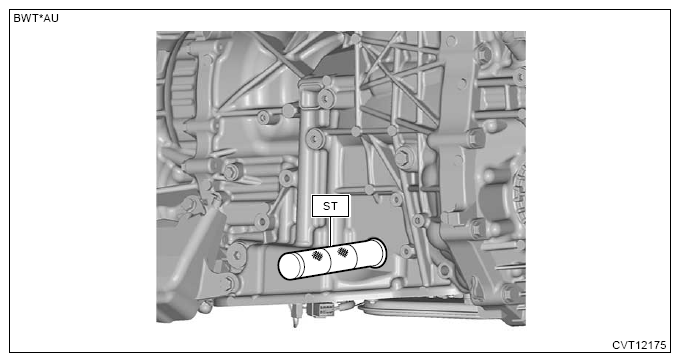

- Install a new oil seal using ST.NOTE:
Apply CVTF to the press-fitting area.
Preparation tool:
ST: INSTALLER (18657AA000)

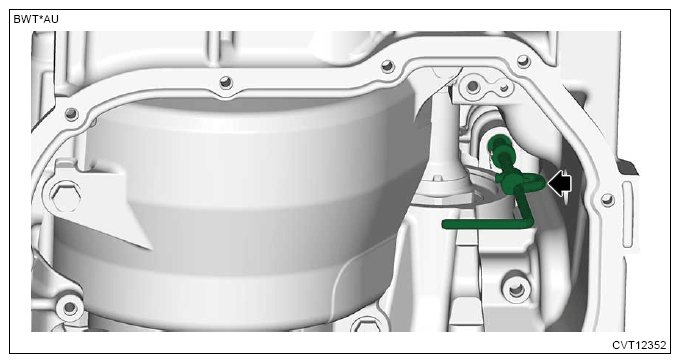

- Install the manual valve.
- Install the parking rod to the manual plate.

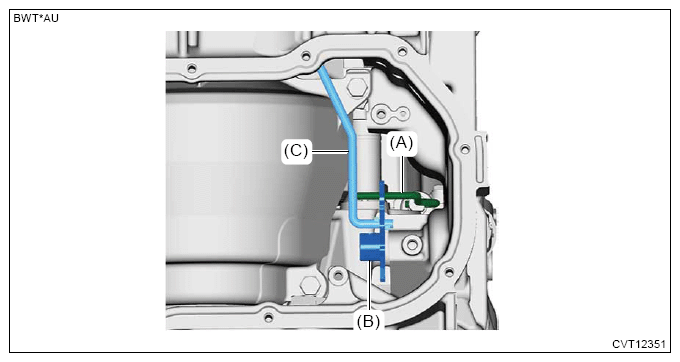

- Set the manual plate (B) and parking rod (C) as a set, and install the rod (A) of the manual valve.
- Install the shifter arm shaft.CAUTION:
Be careful not to damage the oil seal.
