2022 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE

Intermediate Case: Installation

  1. Clean the mating surface of intermediate case and transmission case.

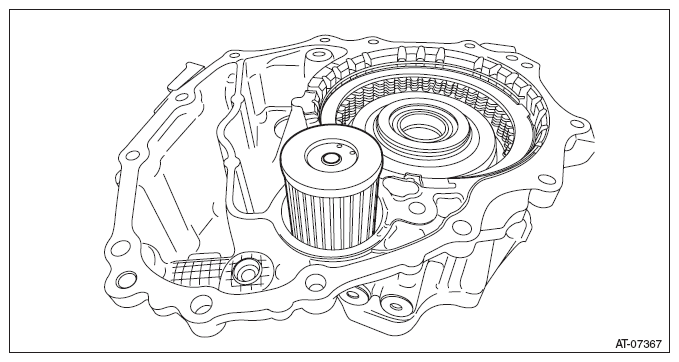

  2. Face the O-ring side of the CVTF filter to the intermediate case side, and install the CVTF filter.
    CAUTION:
    • Apply sufficient amount of CVTF to the O-rings in order to avoid damage and deformation.
    • Use SUBARU genuine CVTF.
    G09482109Courtesy of SUBARU OF AMERICA, INC.
  3. Install a new O-ring to the transmission case.
    CAUTION:
    • Before installing O-rings, apply sufficient amount of CVTF to avoid damage and deformation.
    • Use SUBARU genuine CVTF.
    • Be careful not to incorrectly install or fail to install O-rings and other such parts.

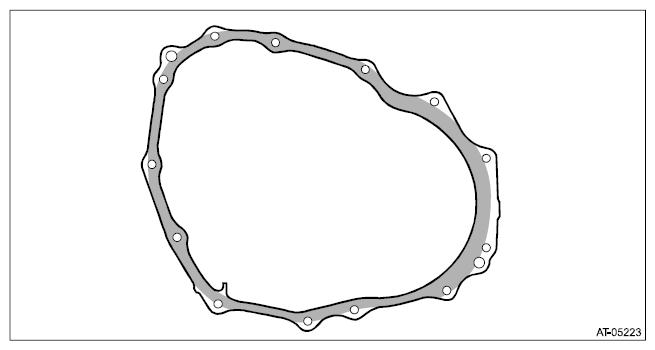

  4. Apply liquid gasket to intermediate case mating surface seamlessly, and temporarily install it.

    Liquid gasket:

    THREE BOND 1215B or equivalent

    G12452382Courtesy of SUBARU OF AMERICA, INC.

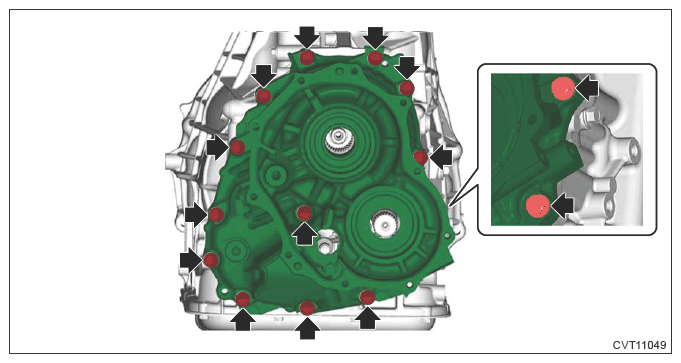

  5. Install the transmission hanger, and tighten the intermediate case mounting bolts.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    G13200157Courtesy of SUBARU OF AMERICA, INC.
  6. Install the transfer reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Reduction Driven Gear>INSTALLATION .
  7. Install the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Clutch>INSTALLATION .
  8. Install the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>INSTALLATION .
  9. Install the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Parking Pawl>INSTALLATION .
  10. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>INSTALLATION .
  11. Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>INSTALLATION .
