Transmission Assembly: Installation

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

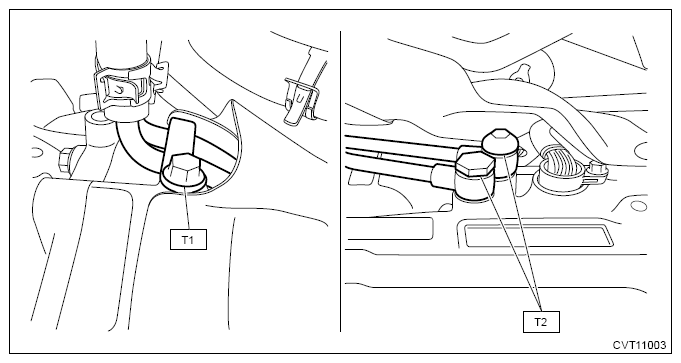

Tightening torque:

T1: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T2: 40 N.m (4.1 kgf-m, 29.5 ft-lb)

Fig 1: CVTF Cooler Inlet And Outlet Pipe Bolts Or Nuts Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

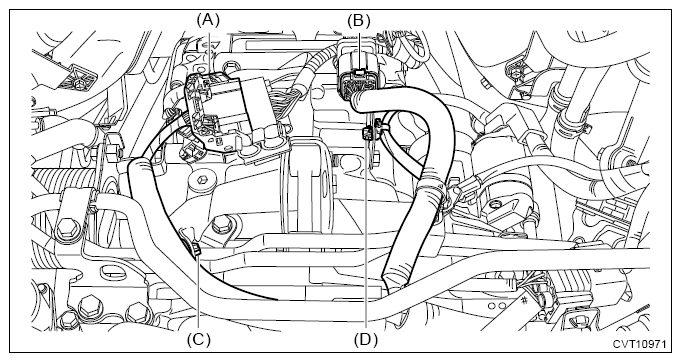

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Tightening torque:

23 N.m (2.3 kgf-m, 17.0 ft-lb)

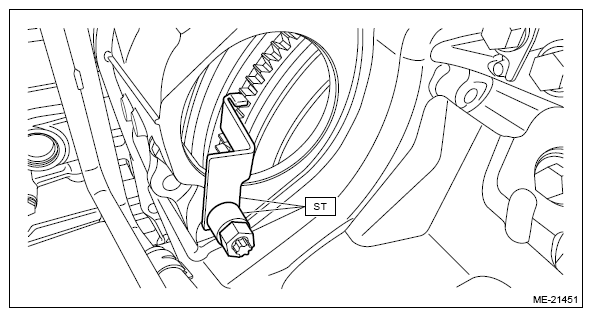

1. Remove the ST from converter case.
   NOTE: Be careful not to drop the ST into the converter housing when removing the ST.

   Courtesy of SUBARU OF AMERICA, INC.

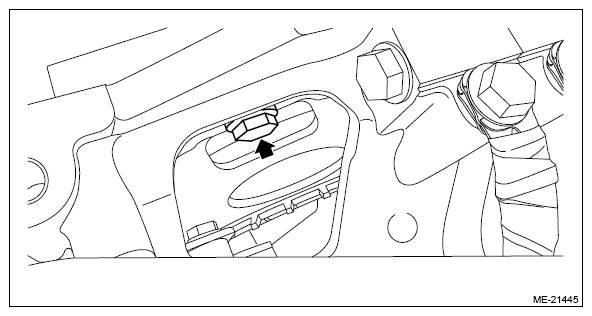

2. Insert the wrench into the crank pulley bolt, and rotate the crank pulley to attach the four bolts securing the torque converter to the drive plate.
   CAUTION: Do not drop the bolts in the converter housing.

   Tightening torque:

   25 N.m (2.5 kgf-m, 18.4 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

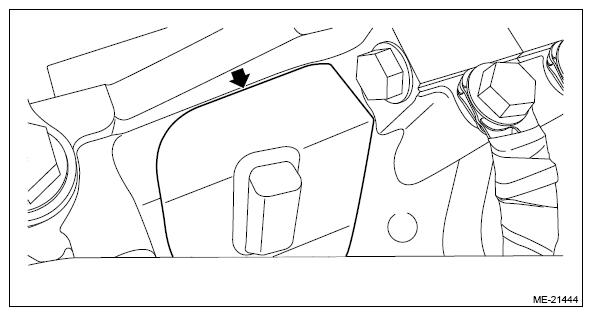

3. Fit the plug to service hole.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

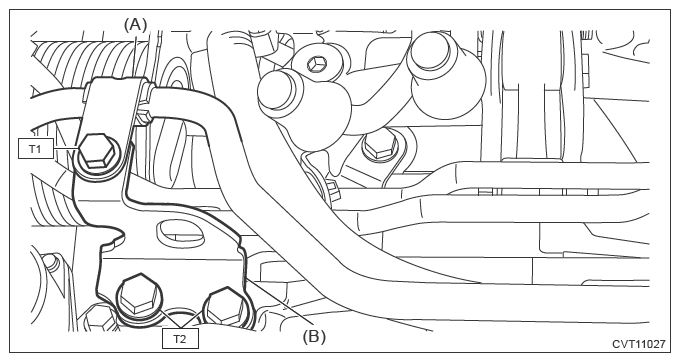

Tightening torque:

T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

T2: 36 N.m (3.7 kgf-m, 26.6 ft-lb)

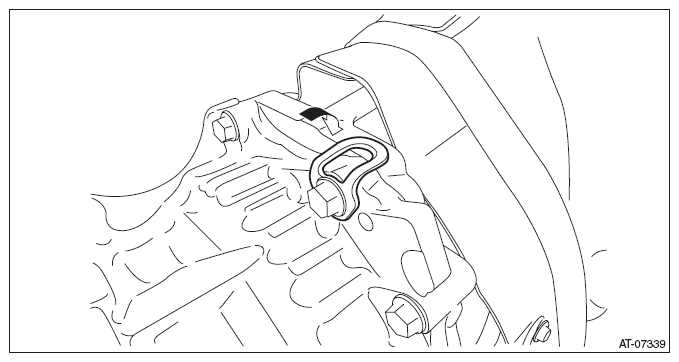

Fig 2: Engine Rear Hanger And Vacuum Pipe Bolts Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.
