Extension Case: Installation
- Clean the mating surface of the extension case and intermediate case.
- Select the thrust bearing. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>ADJUSTMENT .
- Select the shim for transfer reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Reduction Driven Gear>ADJUSTMENT .

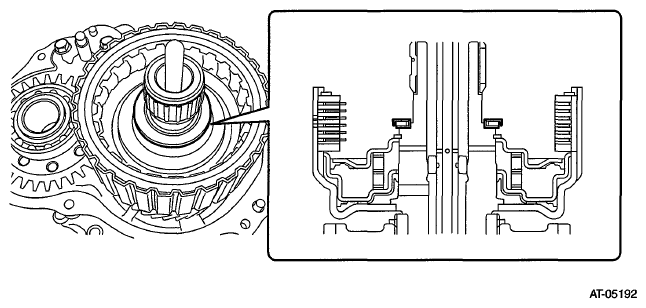

- Install the selected thrust bearing to transfer clutch.NOTE: Install the thrust bearing in the correct direction.
- Attach the selected shim to transfer reduction driven gear.

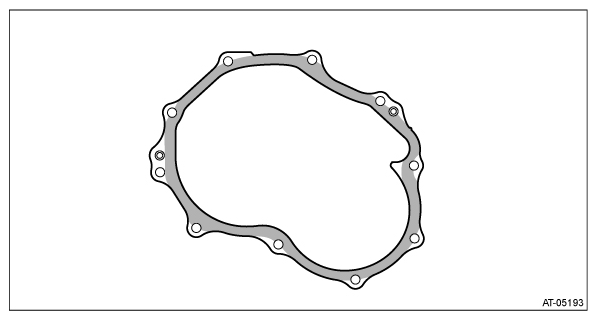

- Apply liquid gasket to the extension case seamlessly, and temporarily install it.
Liquid gasket:
THREE BOND 1215B or equivalent
- Tighten the extension case mounting bolts and install the harness clips.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Install the front wheel speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Front Wheel Speed Sensor>INSTALLATION .
- Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>INSTALLATION .
