2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
MPT Model
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
- Set the select lever to "P" range.

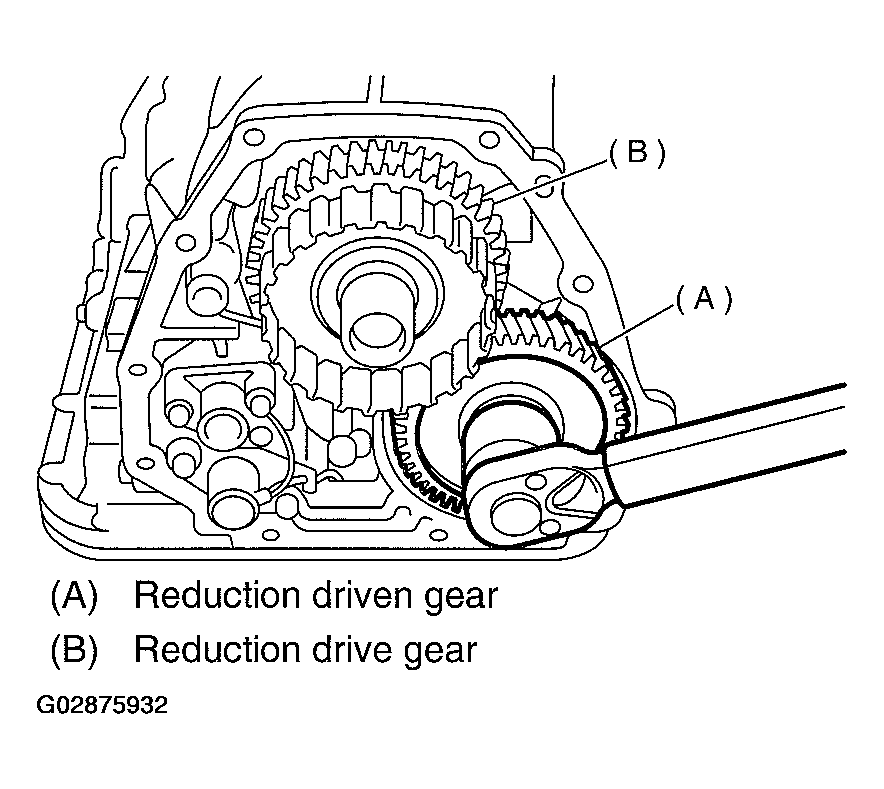

- Using a plastic hammer, install reduction driven gear assembly and new washer, and tighten new drive pinion lock nut.
- Tightening torque: 100 N.m (10.2 kgf-m, 73.8 ft-lb)
- After tightening, stake the lock nut securely.
- Combine the transmission case with the extension case, and install rear vehicle speed sensor.
< Ref. to INSTALLATION , Extension Case.>
- Install the transmission assembly to vehicle.
< Ref. to INSTALLATION , Automatic Transmission Assembly.>
