2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Extension Case: Installation
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
- Attach the selected thrust needle bearing to the end surface of reduction drive gear with vaseline.NOTE: Install thrust needle bearing in the correct direction.
- Install new gasket.

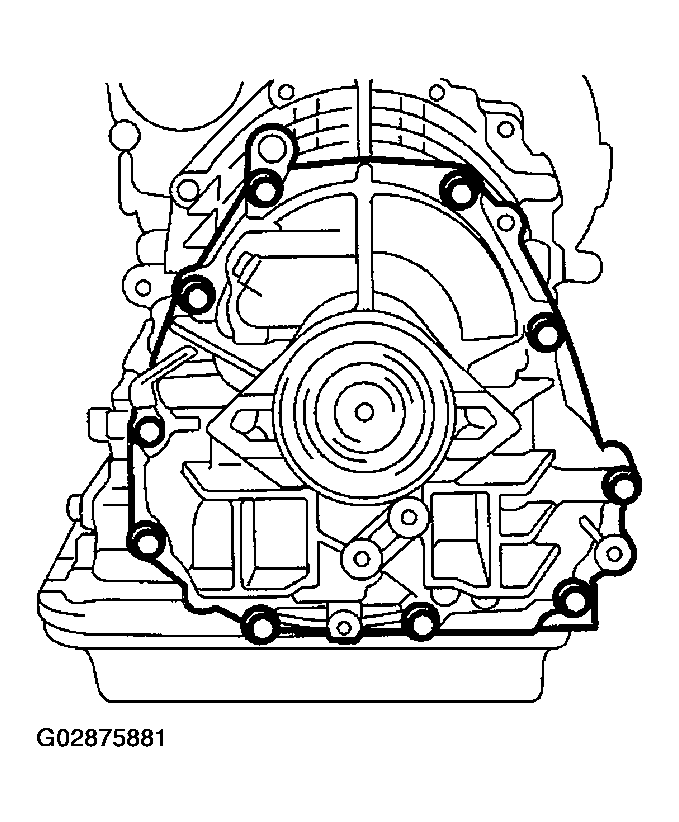

- Install the extension case to the transmission case.
- Tighten bolts to secure the case.
- Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

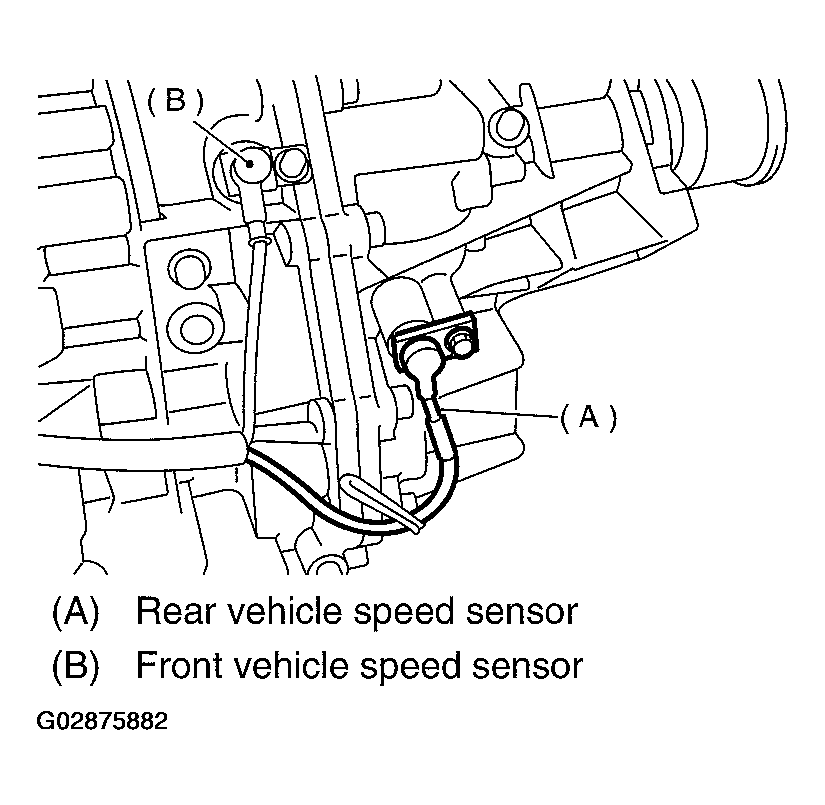

- Install the rear vehicle speed sensor.
- Tightening torque: 7 N.m (0.7 kgf-m, 5.1 ft-lb)
