WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install rear cushion rubber to transmission assembly.
1. Tightening torque: 39 N.m (4.0 kgf-m, 29 ft-lb)
Install ST to torque converter clutch case.
1. ST 498277200 STOPPER SET

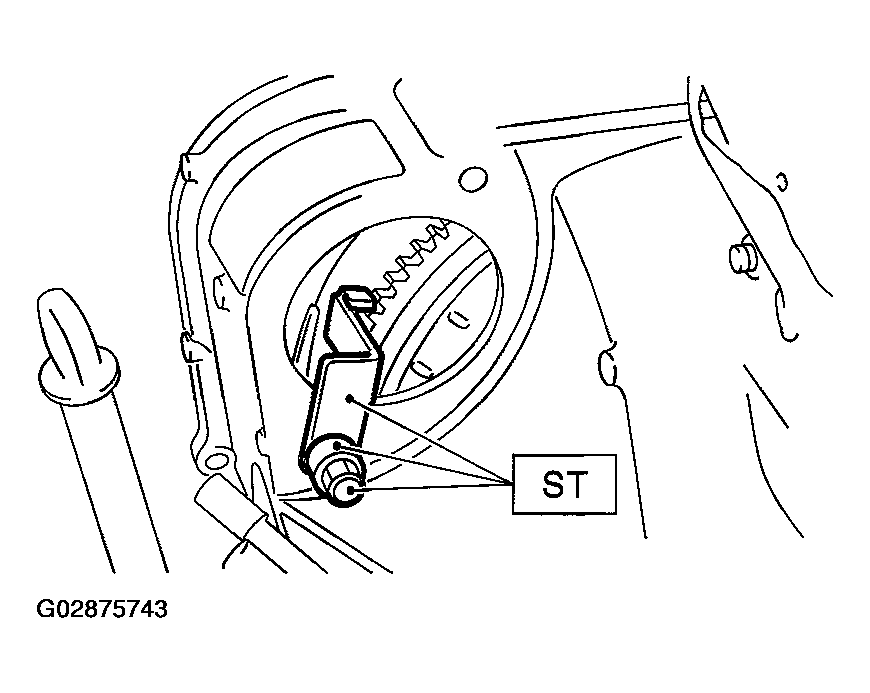

Fig 1: Installing ST To Torque Converter Clutch Case
Courtesy of SUBARU OF AMERICA, INC.
Install transmission onto engine.
1. Gradually raise transmission with transmission jack.

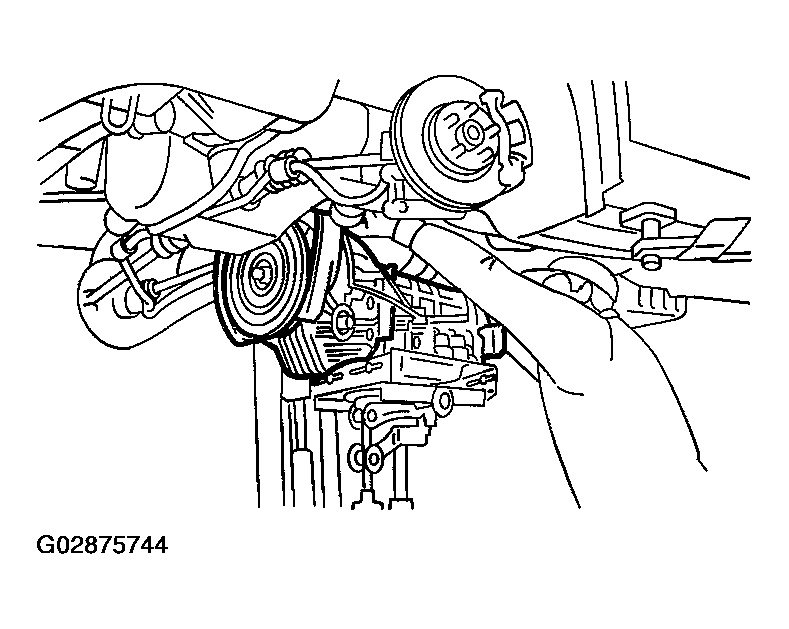

  Fig 2: Installing Transmission Onto Engine
  Courtesy of SUBARU OF AMERICA, INC.
2. Engage them at splines.
Install transmission rear crossmember.
Tightening torque:
1. T1: 35 N.m (3.6 kgf-m, 26 ft-lb)
2. T2: 75 N.m (7.6 kgf-m, 55 ft-lb)

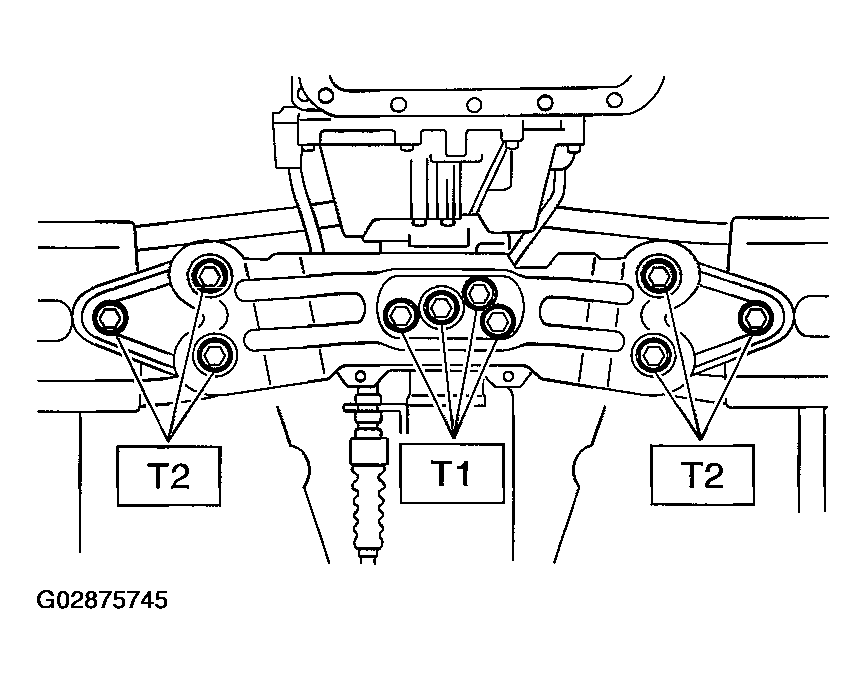

Fig 3: Installing Transmission Rear Crossmember
Courtesy of SUBARU OF AMERICA, INC.
Take off transmission jack.
Tighten nuts and bolts which hold lower side of transmission to engine.
1. Tightening torque: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

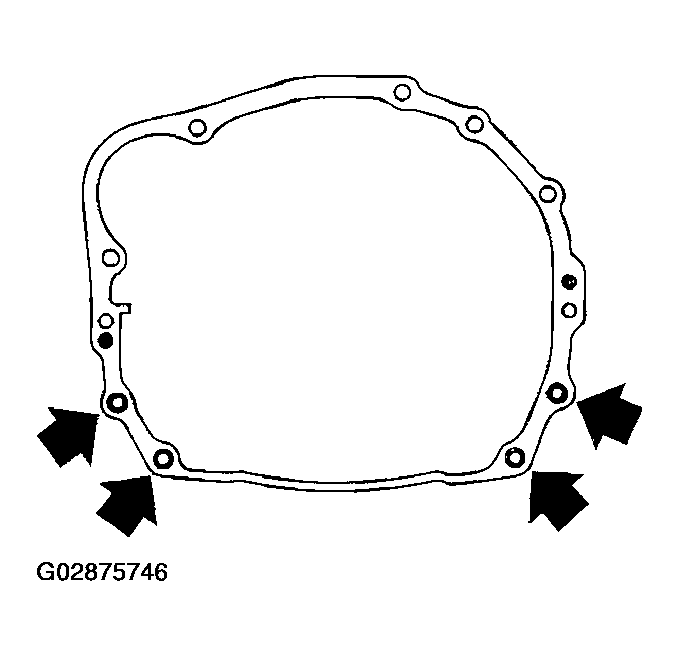

Fig 4: Tightening Lower Side Of Transmission (Except 3.0 L Model)
Courtesy of SUBARU OF AMERICA, INC.
