1992 Jeep Cherokee LimitedFACTORY OEM SERVICE PROCEDURE
Toe-In Adjustment: Wrangler
- Center front wheels straight ahead and lock steering wheel in centered position. Measure toe and compare to specifications. See ALIGNMENT SPECIFICATIONS .

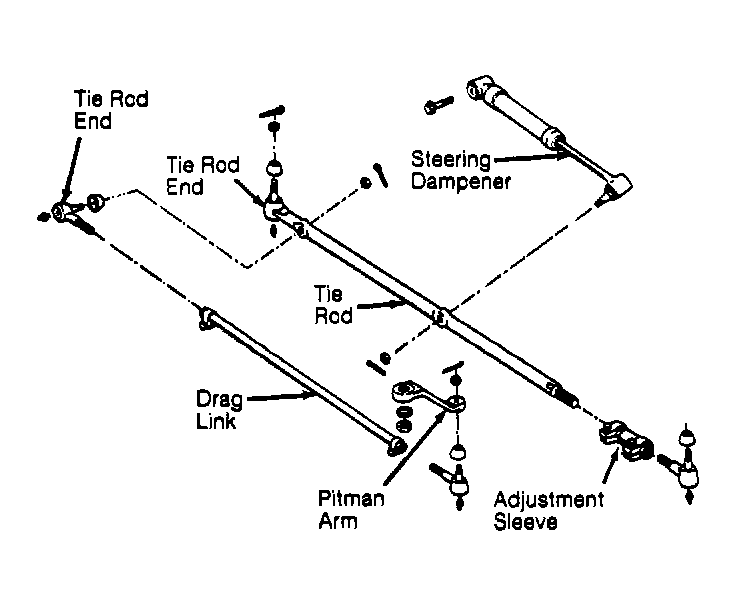

- Loosen tie rod adjustment sleeve clamp bolts. See Fig 1 . Rotate sleeve to adjust toe to specification. See ALIGNMENT SPECIFICATIONS . After adjustment, position clamp bolts so threaded ends face rearward and are angled upward. Tighten sleeve clamp to specification. See TORQUE SPECIFICATIONS .
- If necessary, steering wheel can be centered by adjusting the drag link adjustment sleeve. When adjustment is complete, position sleeve as described earlier and tighten to specifications. See TORQUE SPECIFICATIONS .
