1992 Jeep Cherokee LimitedFACTORY OEM SERVICE PROCEDURE
Except Wrangler
- Center front wheels straight ahead.Measure toe and compare to specifications. See ALIGNMENT SPECIFICATIONS .

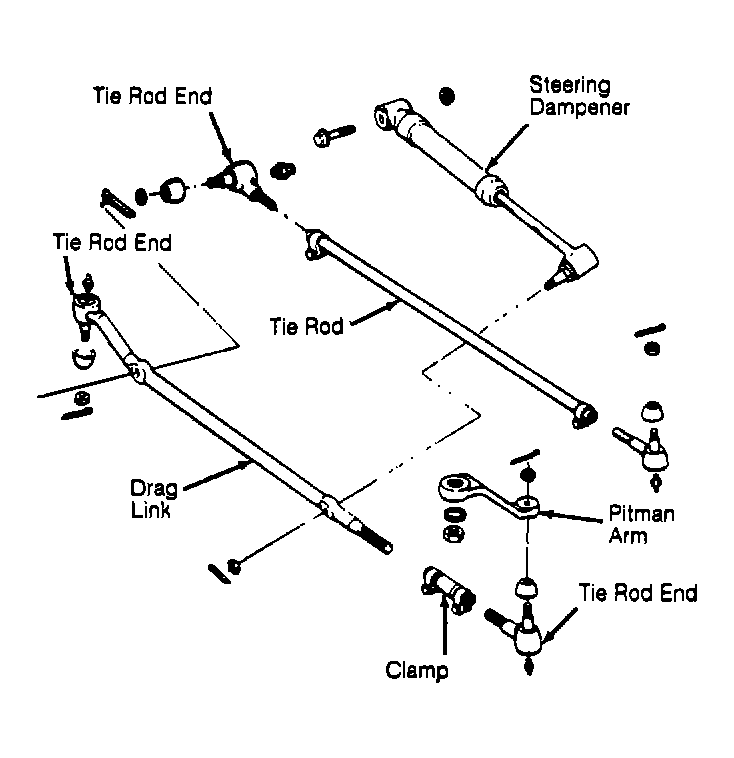

- Center steering wheel by counting the turns required to hit left and right steering stops. Center steering wheel mid-way between stops. Loosen drag link adjustment sleeve clamp bolts. See Fig 1 .
- Rotate sleeve to adjust right wheel toe to specification. Position clamp bolts so threaded bolt ends face upward and to rear of vehicle. Tighten drag link sleeve bolts to specification. See TORQUE SPECIFICATIONS .
- Loosen clamp bolts at each end of tie rod. Rotate tie rod to adjust left wheel to toe specification. See ALIGNMENT SPECIFICATIONS . When adjustment is complete, position sleeve as described earlier and tighten to specifications. See TORQUE SPECIFICATIONS .
