Curtain Airbag
The E90 is equipped with the same type of head protection system as the E83 (X3) installed as standard equipment.
The curtain airbag extends all the way from the A-pillar to the C-pillar, covering the entire side-window area. The curtain airbag inflates between the vehicle occupants and the side windows and pillar trims.
The curtain airbag reduces the risk of occupants' heads or other extremities protruding through the windows in a sideways collision. This leads to less severe neck backlash forces and less severe head injuries.
Advantages of the system:
- Extended covered area for side windows front and rear.
- Protection against glass splinters and penetrating objects.
- Optimized protective area offering protection for occupants of differing sizes.

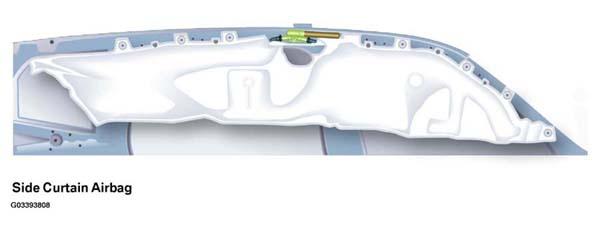

The curtain airbag is positioned along the line of roof side member, folded up. It consists of a gas generator, the two gas nozzles and the curtain.
In the event of a "severe enough" side collision, the generator is detonated and the gas flows through the two gas nozzles into the curtain. Simultaneous inflation of the curtain at the front and back achieves more even deployment.
Because the curtain generators and curtain are a sealed system, the curtain airbag retains its shape and strength for several seconds.
