12 13 ... Further Fault Patterns With Evaluation

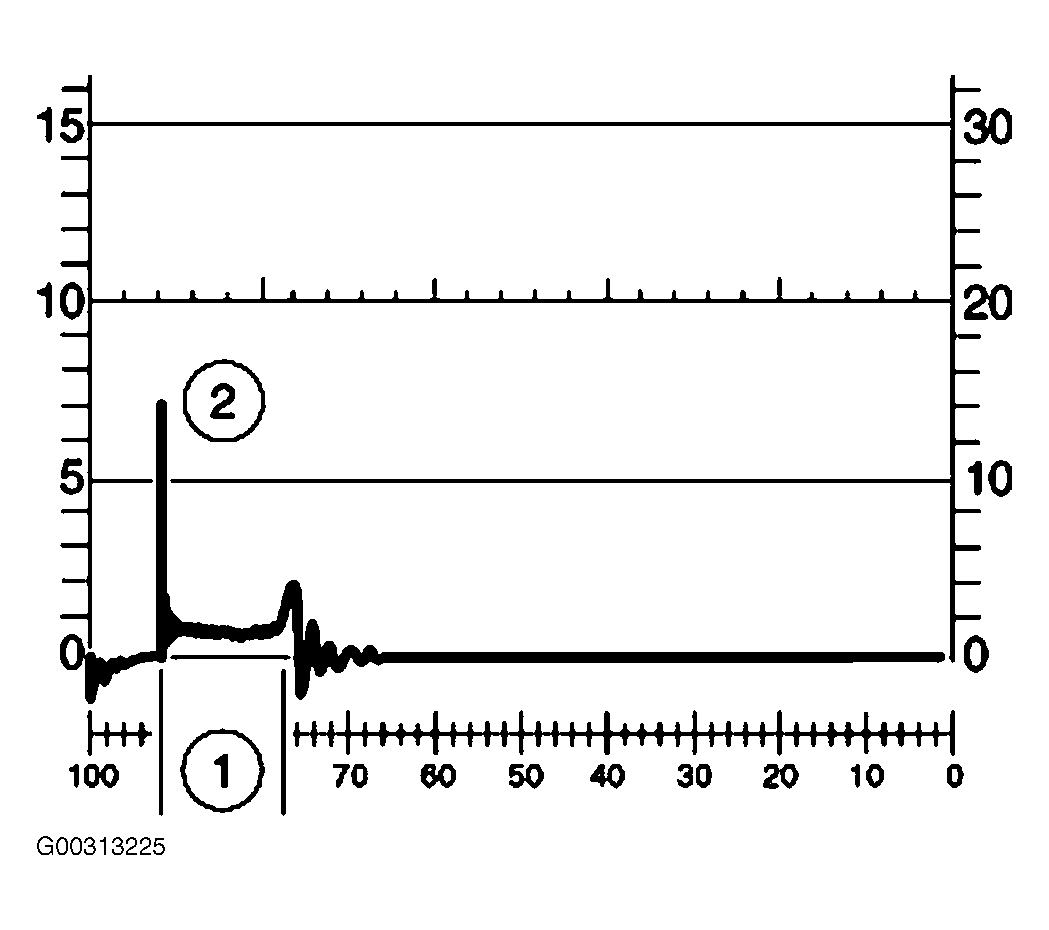

Evaluation of sparking period and ignition voltage peaks at idling speed:
- Normal combustion period.
- Normal ignition voltage peak. Ignition system is OK.

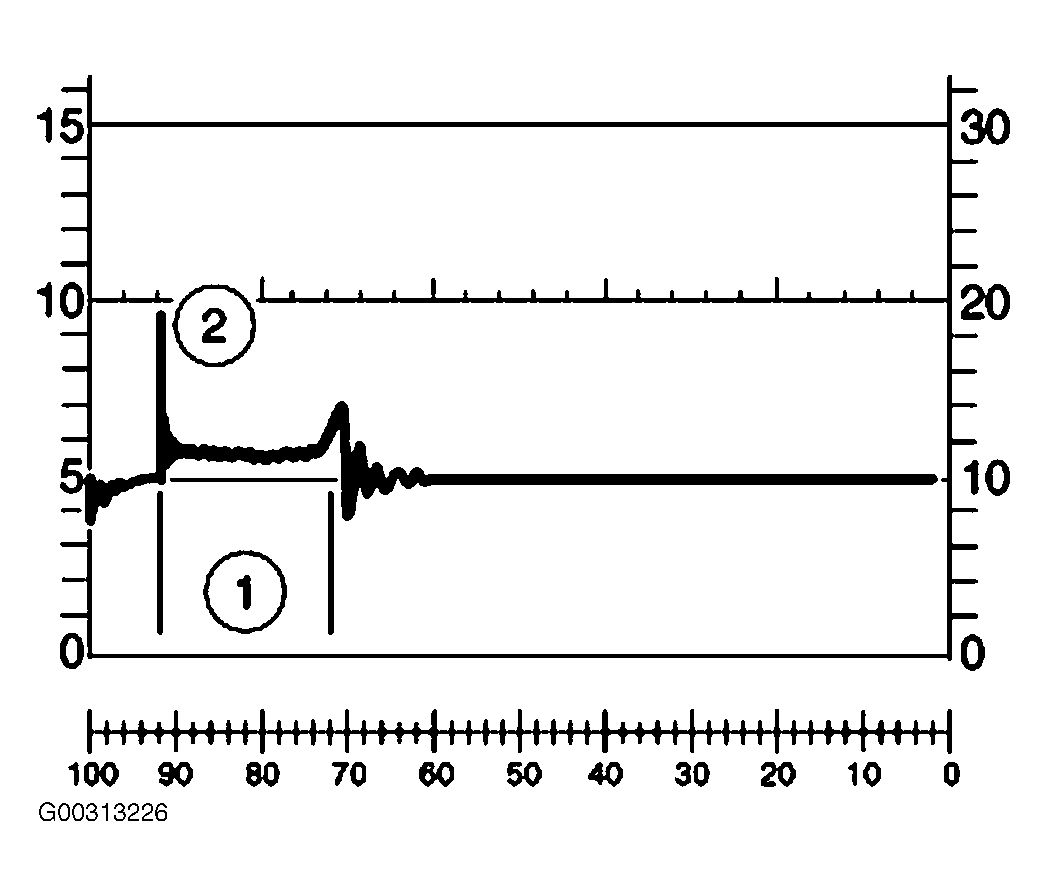

Long sparking period (1) with low ignition voltage peak (2). Indicates low compression.
Fluctuating sparking period: Indicates contamination on spark plug (shunt).

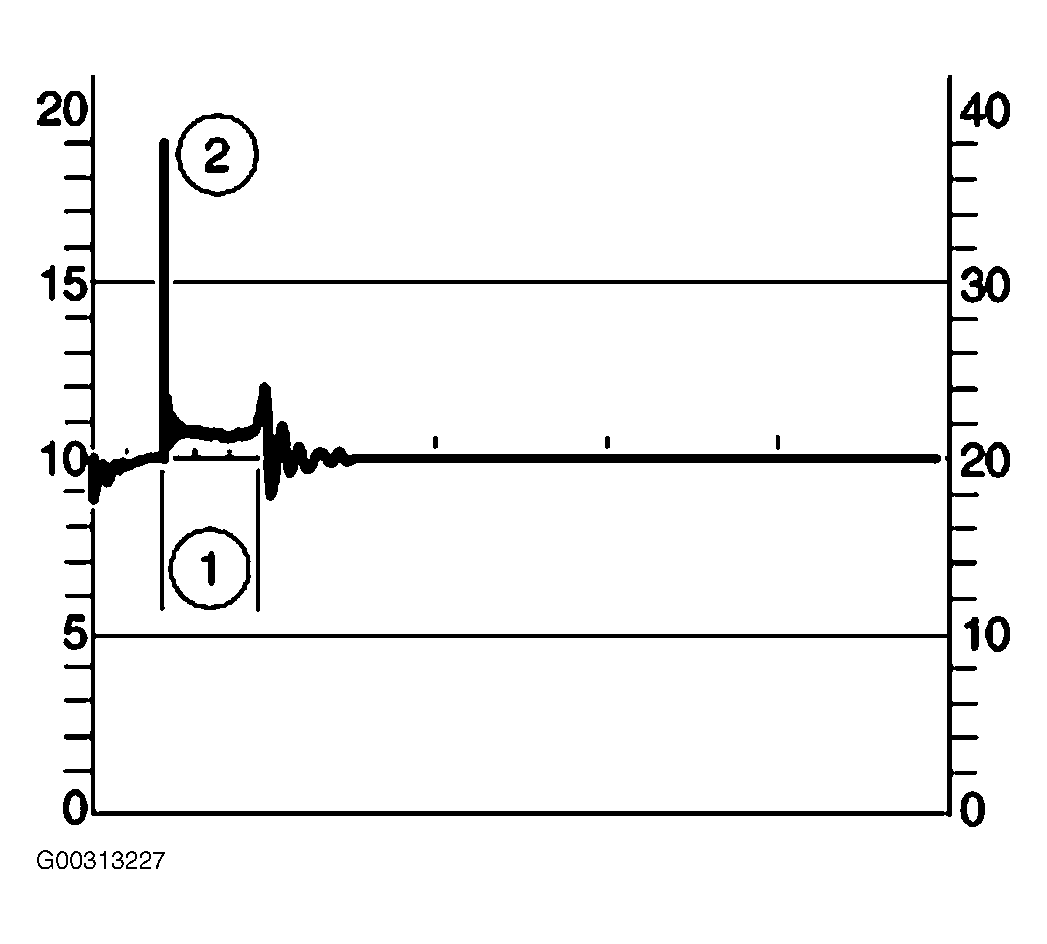

Short sparking period (1) with high ignition voltage peak. Constant but short sparking period: Indicates defective ignition lead.
