12 31 ... Replacing alternator belt pulley
For Special Tool identification, see SPECIAL TOOLS - M5 .
Special Tools Required:
- 12 7 110
Remove and install alternator drive belt.
Depending on alternator type, grip shaft with:
- Hexagon socket.
- Multi-tooth socket.
- Torx socket wrench.

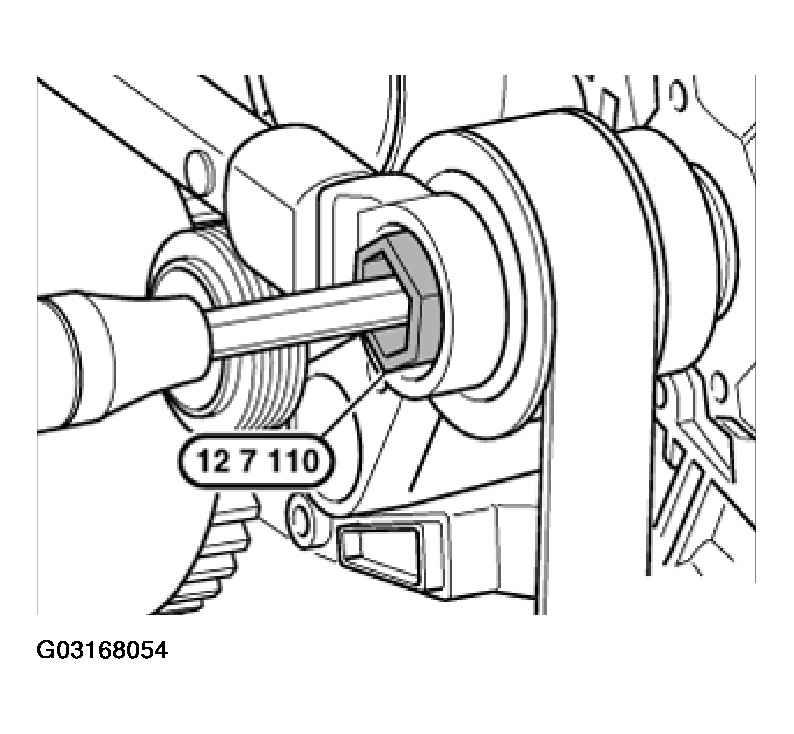

Release nut with special tool 12 7 110.
Installation:
Tightening torque for pulley (45 N.m.).
Tightening torque for pulley with ribbed drive belt, (80 N.m.).
