Toe Adjustment (Front)
Before attempting toe adjustment, see PRELIMINARY CHECKS and WHEEL ALIGNMENT WORK SEQUENCE .

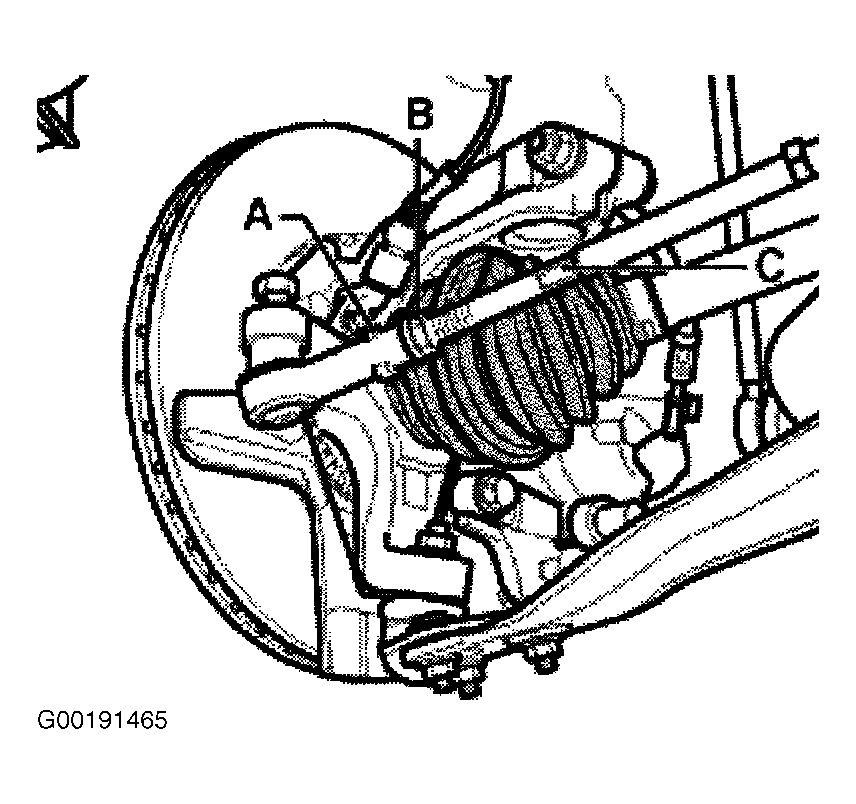

Counter holding hex "A", loosen lock nut "B" on tie rod. See Fig 1 . Also, loosen rack boot outer clamp. Adjust toe by turning hex nut "C" until proper setting is reached. See WHEEL ALIGNMENT SPECIFICATIONS . Do not allow boot to twist during adjustment, straighten twisted boots after toe is set. Tighten tie rod lock nuts to 41 ft. lbs. (55 N.m). Recheck toe adjustment.
