2012 Acura TL BaseFACTORY OEM SERVICE PROCEDURE
Line Pressure Switch Replacement
- Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
- Remove the battery base (see ENGINE REMOVAL ).

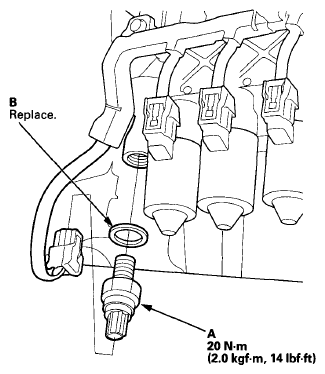

- Disconnect the line pressure switch connector, and remove the line pressure switch (A) and the sealing washer (B).
- Install a new line pressure switch with a new sealing washer, and tighten the switch.
- Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
- Install the battery base (see ENGINE INSTALLATION ).
- Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
