Engine Installation
Special Tools Required
- Engine Support Hanger, A and Reds AAR-T1256*
- Engine Hanger Balance Bar VSB02C000019*
- 2008 V6 Attachment Arm SIL02C000033*
- Subframe Adapter VSB02C000016*
*: Available through the Acura Tool and Equipment Program, 888-424-6857.

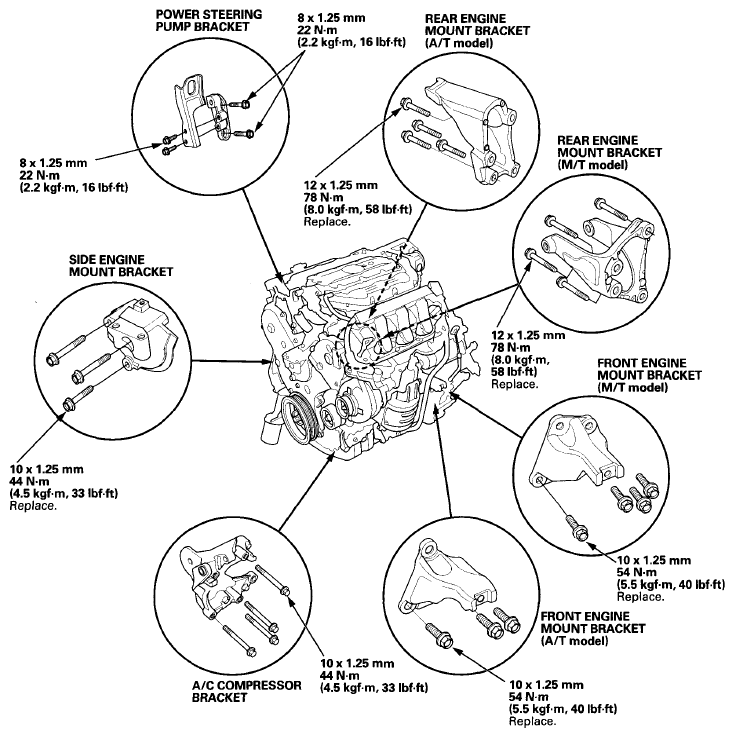

- Install the engine mount brackets and the accessory brackets and tighten their bolts to the specified torque.
- Position the engine/transmission under the vehicle. Be sure that they are properly aligned. Carefully lower the vehicle until the engine/transmission are properly positioned in the engine compartment. Make sure the vehicle is not resting on any part of the engine/transmission. Support the engine/transmission with a chain hoist (A) and carefully raise the engine/transmission into place.NOTE: Reinstall the mounting bolts/support nuts in the sequence given in the following steps. Failure to follow this sequence may cause excessive noise and vibration, and reduce engine mount life.
