System Overview: Signals

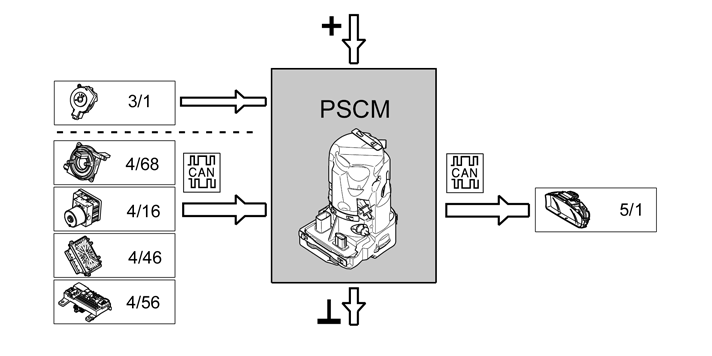

The table below summarizes the input signals to and output signals from the Power Steering Control Module (PSCM). The signal types are divided into directly connected signals and CAN communication. The illustration below displays the same information with the Volvo component designations.
| Input signals | Output signals |
| Directly connected: | Directly connected: |
Ignition
(3/1):
|
|
| Via CAN communication: | Via CAN communication: |
Steering wheel angle sensor module (SAS)
(4/68):
Brake control module (BCM) (4/16):
Engine control module (ECM) (4/46)
Central electronic module (CEM) (4/56):
|
Driver information module (DIM)
(5/1):
|
