2004 Volvo V70 Base, 2.4 61, StandardFACTORY OEM SERVICE PROCEDURE

Location of components

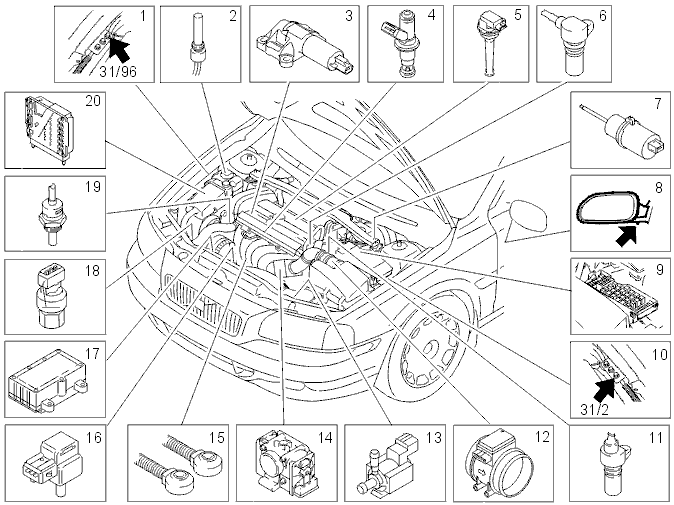

Fig 1: Identifying Fuel Supply Control System Component Locations
GLL103026Courtesy of VOLVO CARS OF NORTH AMERICA.

Location of componentsΒ

  1. Right wheel arch ground terminal
  2. Engine coolant level switch
  3. Camshaft reset valve
  4. Injector
  5. Ignition coil
  6. Camshaft position (CMP) sensor
  7. Brake pedal sensor
  8. Outside temperature sensor in the left-hand door mirror
  9. Relay box / fuse box
  10. Left wheel arch ground terminal
  11. Engine speed (RPM) sensor
  12. Mass air flow (MAF) sensor with integrated temperature sensor
  13. Canister purge (CP) valve
  14. Throttle unit
  15. Knock sensors (KS)
  16. Manifold absolute pressure (MAP) sensor
  17. Engine cooling fan (FC) control module
  18. A/C pressure sensor
  19. Engine coolant temperature (ECT) sensor
  20. Engine control module (ECM).
