2004 Volvo V70 Base, 2.4 61, StandardFACTORY OEM SERVICE PROCEDURE

Maneuvering seats with memory

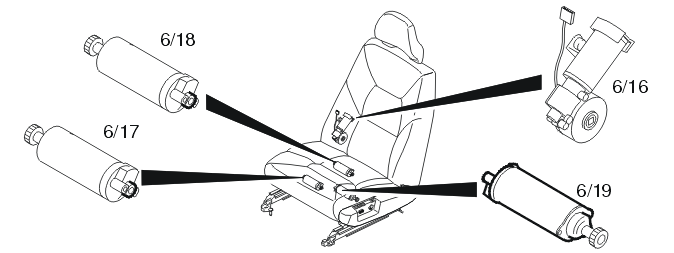

Fig 1: Identifying Seat Motors
GLL107329Courtesy of VOLVO CARS OF NORTH AMERICA.

On a power seat, the backrest can be adjusted, the seat height can be altered and the seat can be moved forwards or backwards. There are four motors for moving the seat. The control buttons are on the outside of the seat and are in the shape of a small seat and a small backrest. There are two control buttons on each panel. The buttons are spring-loaded, so they must be held pressed in for the seat to move.

The seat can be maneuvered:

  • Within a period of 9 minutes and 40 seconds of the door being opened
  • Within 40 seconds of the door being closed
  • With the key in the radio position
  • With the ignition on.
