A/C pressure sensor

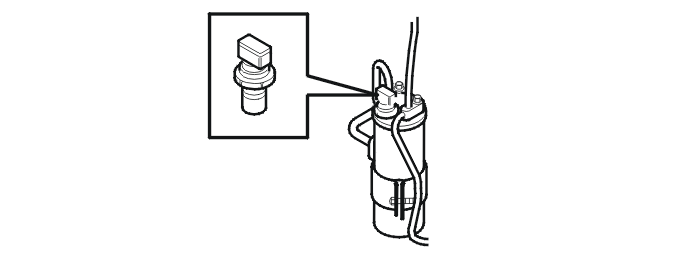

A linear pressure sensor is mounted directly on the receiver drier. The pressure sensor has an integrated measurement amplifier that generates an output voltage that is linear to the pressure.
The pressure sensor signal is used to control the following functions:
- the engine cooling fan (FC)
- deactivation of the compressor when pressure is too high
- deactivation of the compressor if the system has run dry of refrigerant.
