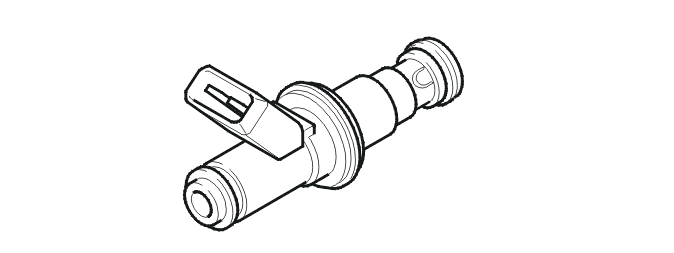

Engine Control Module (ECM) (B5244S; 2003-2007): Design: Injectors
The function of the injectors is to spray fuel into the cylinders in the correct spray patterns. This happens sequentially.
The injectors are in the intake manifold.
It is essential that the injectors are correctly installed with no air leakage around them. Fuel leakage from the top of an injector when it is not activated may lead to starting and driving problems.
The engine control module (ECM) controls the injectors using a pulse width modulation (PWM) signal.
The engine control module (ECM) can diagnose the injectors. The injectors can be activated using VIDA.
