Driver Information Module (2001): Function: Tachometer

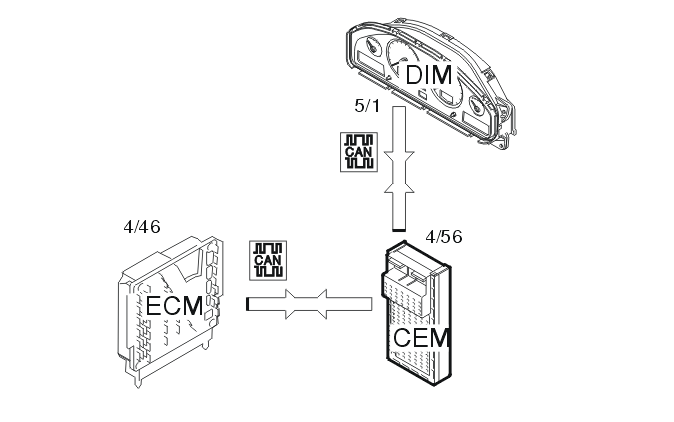

A flywheel sensor (7/25) is connected to the engine control module (ECM) (4/46). The engine control module (ECM) transmits the engine speed signal onwards via the high speed section of the Control Area Network (CAN). The central electronic module (CEM) (4/56) receives the signal and generates a corresponding signal on the low speed section of the Control Area Network (CAN). The driver information module (DIM) (5/1) reads the signal from the low speed section of the Control Area Network (CAN). The driver information module receives the value and presents the actual engine speed for the driver.
