RTI Control Module (To Display)
Before taking any readings, see Connecting the breakout box and checking the ground terminal .

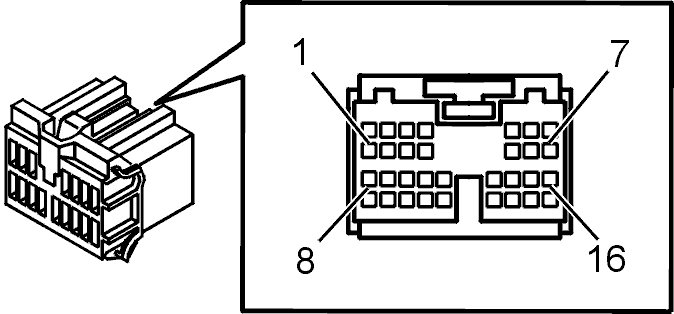

The RTI control module terminals C1-C16 correspond to terminals #25-#40 on the breakout box.
| Control module terminal | Breakout box terminal | Signal Type | Ignition On | Other |
|---|---|---|---|---|
| C1 | #25 | Color signal (red), screen | Analog signal when red color is displayed | 0.714 V p-p |
| C2 | #26 | Color signal (blue), screen | Analog signal when blue color is displayed | 0.714 V p-p |
| C3 | #27 | Screen ground, video signals | Ulow | - |
| C4 | #28 | - | - | - |
| C5 | #29 | - | - | - |
| C6 | #30 | - | - | - |
| C7 | #31 | - | - | - |
| C8 | #32 | Color signal (green), display | Analog signal when green color is displayed | 0.714 V p-p |
| C9 | #33 | Composite synch, display | Analog signal | 0-5 V |
| C10 | #34 | Screen ground, cable to the screen | Ulow | - |
| C11 | #35 | Signal, display remote control | Digital signal | 38 kHz carrier wave when the remote control is pressed |
| C12 | #36 | Serial bus to the display | Digital signal | Half duplex, start-stop synchronizing, 2400 BPS |
| C13 | #37 | - | - | - |
| C14 | #38 | Video signal to display | Analog signal | 1 V p-p +/- 0.2 V |
| C15 | #39 | - | - | - |
| C16 | #40 | - | - | - |
