Removal [06/2016 - ]: Procedure
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
The power window system utilizes a mechanism in which the door glass moves down slightly when the door is opened, and in which the glass moves up when the door closed in order to prevent the door molding from being damaged. When the negative (-) battery terminal needs to be disconnected for servicing, fully open the driver and passenger door glasses in advance.
- REMOVE FAN AND GENERATOR V BELT
(Refer to REMOVAL [06/2016 - ] )

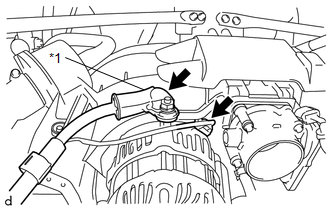

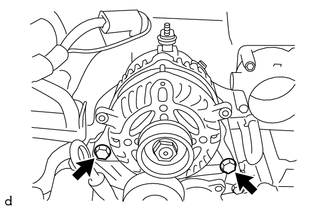

- REMOVE GENERATOR ASSEMBLY
NO RELATED
