2004 Toyota Celica GT, StandardFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Inspection

  1. REMOVE THROTTLE BODY (See  REMOVAL   or  REMOVAL  )
  2. REMOVE RADIATOR RESERVOIR (See  REMOVAL  )
  3. REMOVE INTAKE MANIFOLD (See  REMOVAL  )
  4. 1ZZ-FE: REMOVE KNOCK SENSOR
    1. Disconnect the knock sensor connector.
    2. Using SST, remove the knock sensor.
      • SST 09816-30010

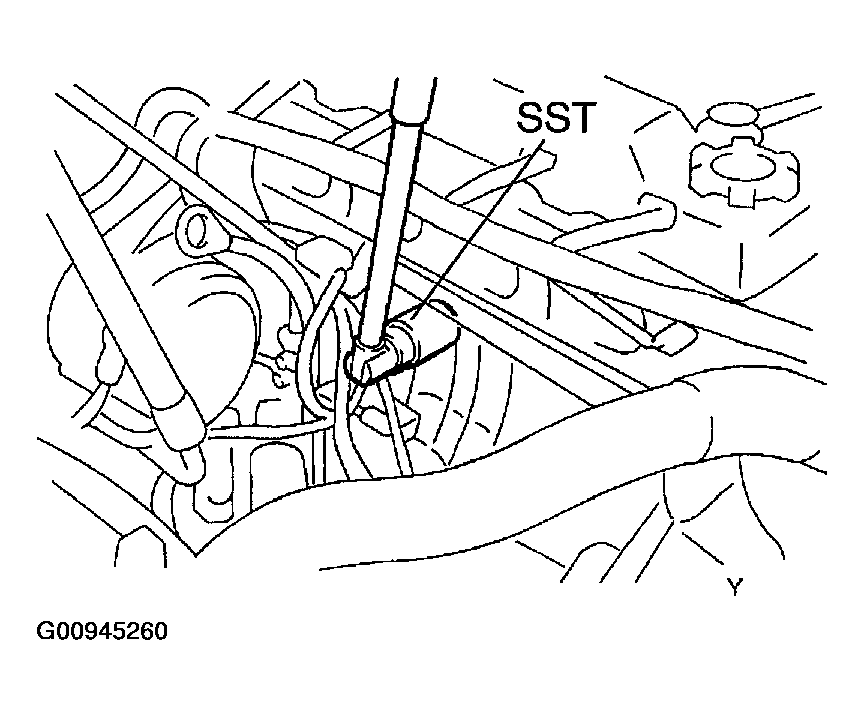

    Fig 1: Removing Knock Sensor
    G00945260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. 2ZZ-GE: REMOVE KNOCK SENSOR
    1. Disconnect the knock sensor connector.
    2. Remove the nut and knock sensor.

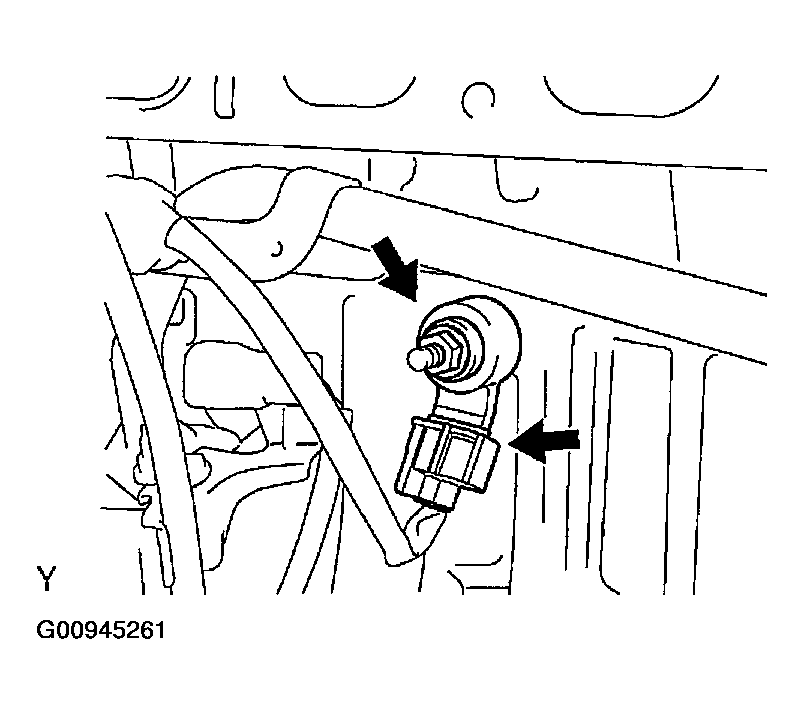

    Fig 2: Removing Nut & Knock Sensor
    G00945261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. 1ZZ-FE: INSPECT KNOCK SENSOR

    Using an ohmmeter, check that there is continuity between the terminal and body.

    If there is continuity, replace the sensor.

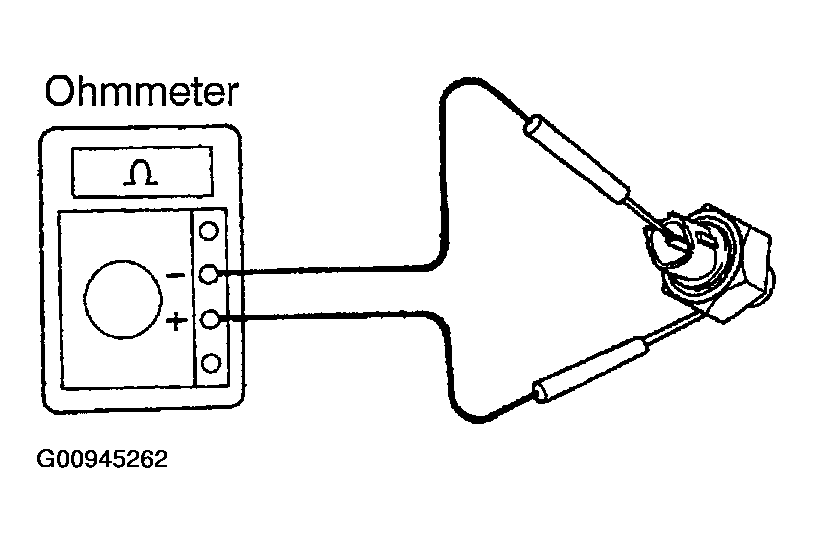

    Fig 3: Checking There Is Continuity Between Terminal & Body Using An Ohmmeter
    G00945262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. 2ZZ-GE: INSPECT KNOCK SENSOR

    Using an ohmmeter, measure the resistance between terminals.

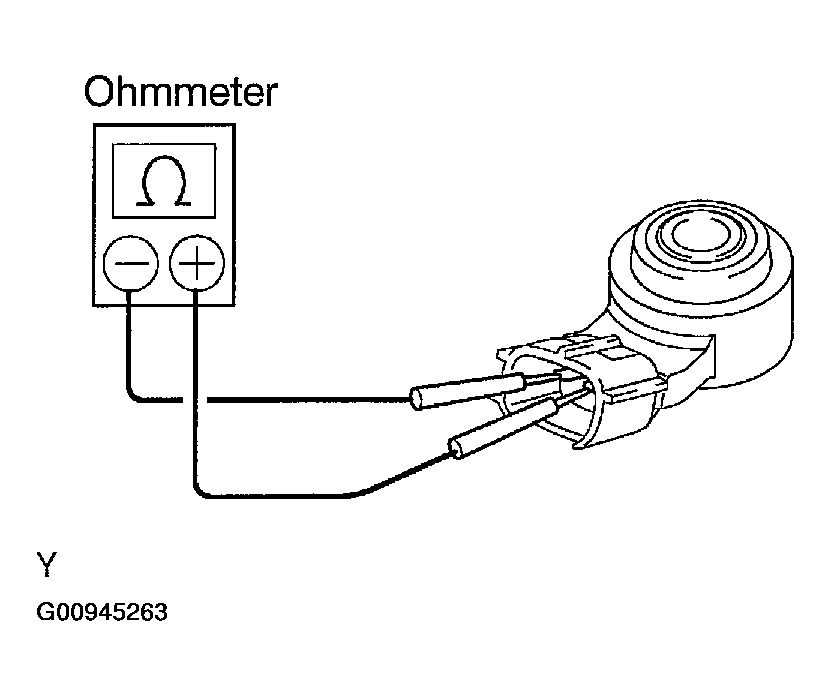

    Fig 4: Measuring Resistance Between Terminals Using An Ohmmeter
    G00945263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Resistance: 120-280 kΩ at 20°C (68°F)

    If the resistance is not specified, replace the sensor.

  8. 1ZZ-FE: REINSTALL KNOCK SENSOR
    1. Using SST, install the knock sensor.
      • SST 09816-30010
    2. Connect the knock sensor connector.
  9. 2ZZ-GE: REINSTALL KNOCK SENSOR
    1. Install the knock sensor with the nut.
    2. Connect the knock sensor connector.
  10. REINSTALL INTAKE MANIFOLD (See  INSTALLATION  )
  11. REINSTALL RADIATOR RESERVOIR (See  INSTALLATION  )
  12. REINSTALL THROTTLE BODY (See  REMOVAL   or  REMOVAL  )
