2000 Toyota RAV4 Base, AWD, AutomaticFACTORY OEM SERVICE PROCEDURE
Motor Relay Section

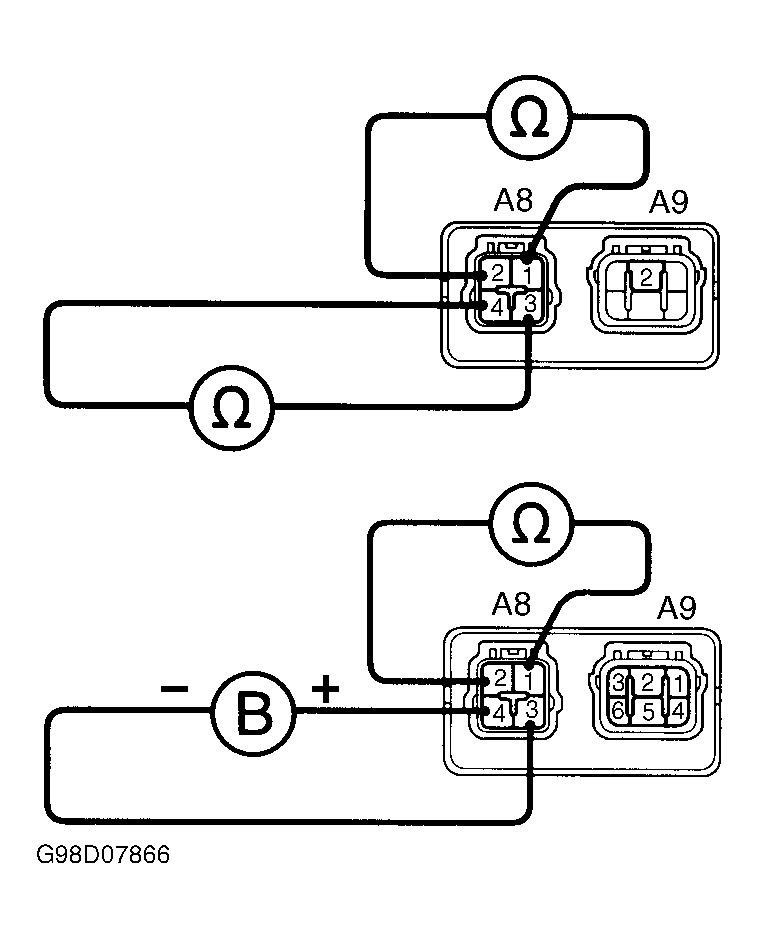

- Check continuity between specified ABS control relay terminals. See Fig 1. Continuity should exist between terminals A8-3 and A8-4. Continuity should not exist between terminals A8-1 and A8-2. Measure resistance between terminals A8-3 and A8-4. Resistance should be 68 ohms. Replace motor relay if it does not test as described.
- If relay tests as described, apply battery voltage and ground between terminals A8-3 and A8-4. Check continuity between terminals A8-1 and A8-2. Continuity should exist. If continuity is not as described, replace ABS control relay.
