2000 Toyota RAV4 2-Door 2WD L4-2.0L (3S-FE)FACTORY OEM SERVICE PROCEDURE
Ignition Relay: Testing and Inspection
IGNITION RELAY
INSPECTION
1. REMOVE NO.2 RELAY BOX COVER
2. REMOVE IGNITION RELAY (Marking: IG2)

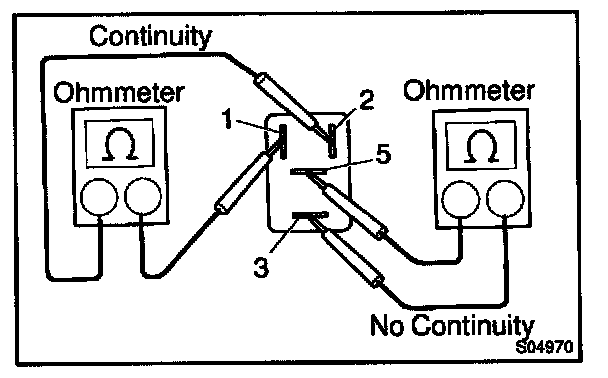

3. INSPECT IGNITION RELAY CONTINUITY
a. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
b. Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.
4. INSPECT IGNITION RELAY OPERATION
a. Apply battery positive voltage across terminals 1 and 2.
b. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.
5. REINSTALL IGNITION RELAY
6. REINSTALL RELAY BOX COVER
INSPECTION
1. REMOVE NO.2 RELAY BOX COVER
2. REMOVE IGNITION RELAY (Marking: IG2)
3. INSPECT IGNITION RELAY CONTINUITY
a. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
b. Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.
4. INSPECT IGNITION RELAY OPERATION
a. Apply battery positive voltage across terminals 1 and 2.
b. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.
5. REINSTALL IGNITION RELAY
6. REINSTALL RELAY BOX COVER
