2000 Toyota RAV4 2-Door 2WD L4-2.0L (3S-FE)FACTORY OEM SERVICE PROCEDURE

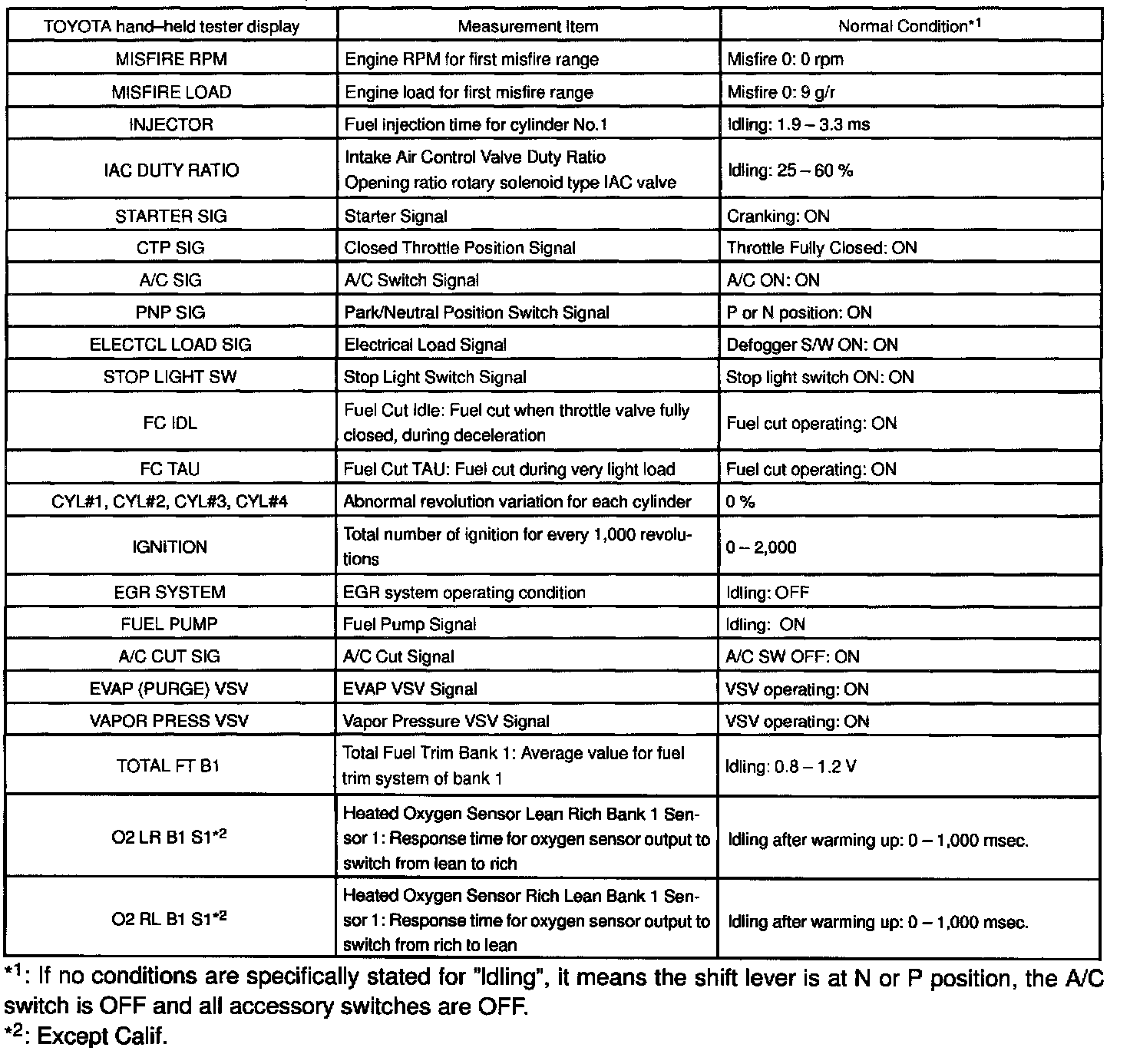

Normal Scan Data Values
ENGINE OPERATING CONDITION
NOTE: The values given below for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies differ from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.
a. CARB mandated signals
b. Toyota Enhanced Signals
NOTE: The values given below for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies differ from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.
a. CARB mandated signals
b. Toyota Enhanced Signals
