2000 Toyota RAV4 2-Door 2WD L4-2.0L (3S-FE)FACTORY OEM SERVICE PROCEDURE
Main Relay (Computer/Fuel System): Testing and Inspection
EFI MAIN RELAY
INSPECTION

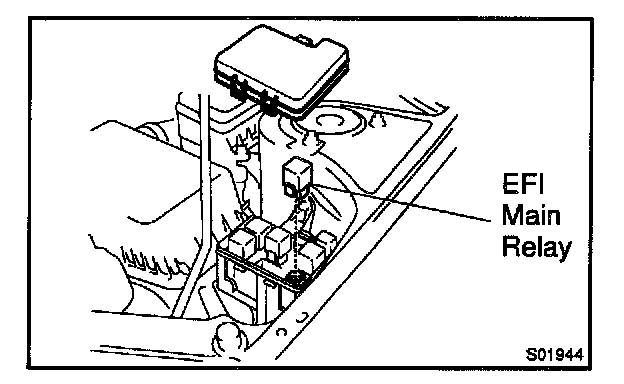

1. REMOVE EFI MAIN RELAY (Marking: EFI)
2. INSPECT EFI MAIN RELAY

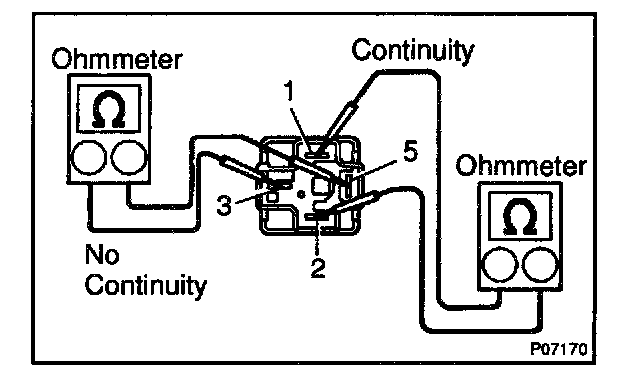

3. INSPECT RELAY CONTINUITY
a. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
b. Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.
4. INSPECT RELAY OPERATION
a. Apply battery positive voltage across terminals 1 and 2.
b. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.
5. REINSTALL EFI MAIN RELAY

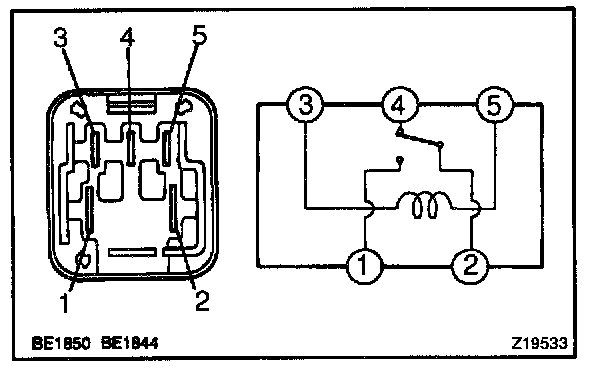

INSPECT ENGINE MAIN RELAY (Marking: E/G MAIN) CONTINUITY
If continuity is not as specified, replace the relay.
INSPECTION
1. REMOVE EFI MAIN RELAY (Marking: EFI)
2. INSPECT EFI MAIN RELAY
3. INSPECT RELAY CONTINUITY
a. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
b. Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.
4. INSPECT RELAY OPERATION
a. Apply battery positive voltage across terminals 1 and 2.
b. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.
5. REINSTALL EFI MAIN RELAY
INSPECT ENGINE MAIN RELAY (Marking: E/G MAIN) CONTINUITY
If continuity is not as specified, replace the relay.
