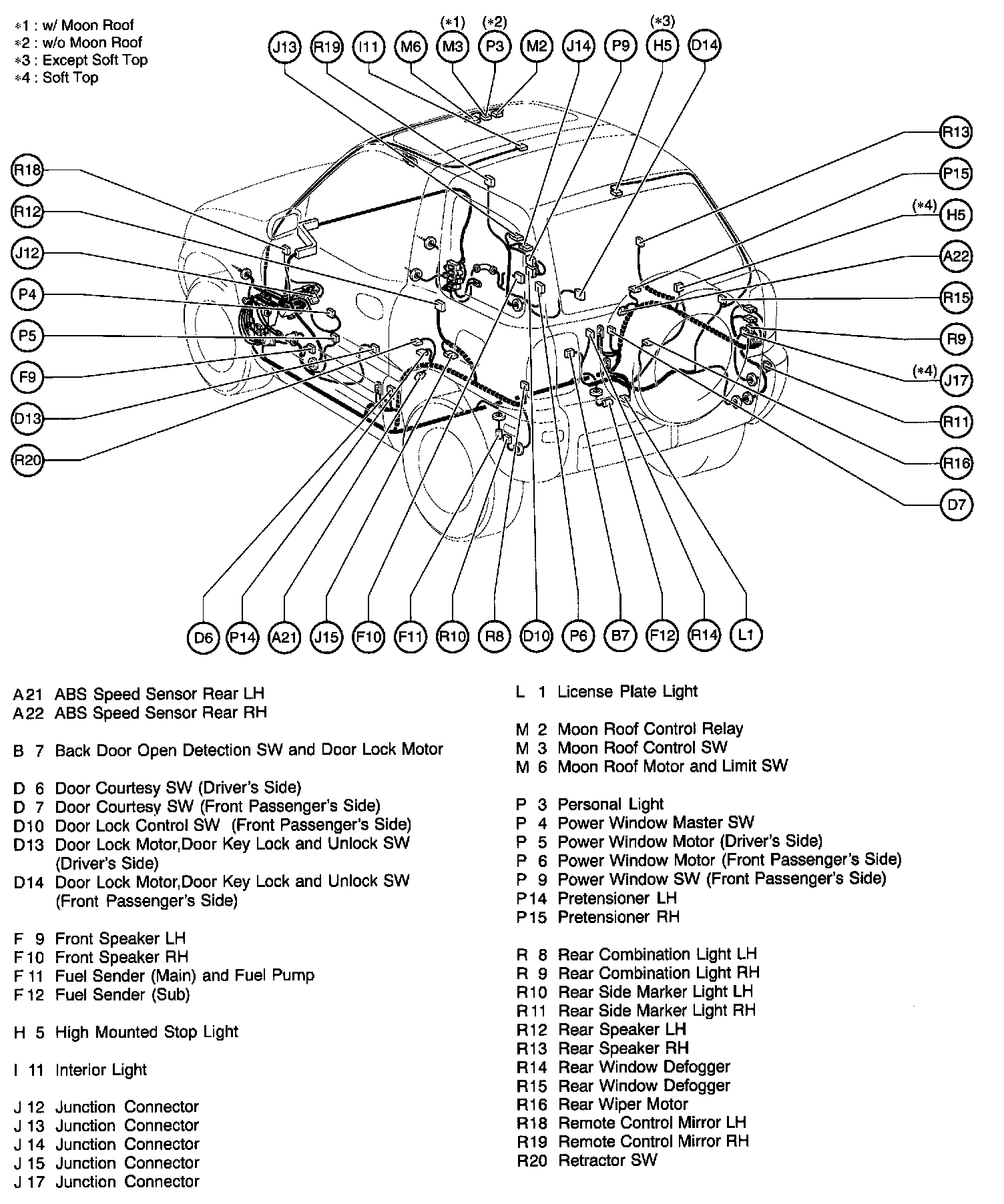

2000 Toyota RAV4 2-Door 2WD L4-2.0L (3S-FE)FACTORY OEM SERVICE PROCEDURE
Body
A21 ABS Speed Sensor Rear LH
A22 ABS Speed Sensor Rear RH
B 7 Back Door Open Detection SW and Door Lock Motor
D 6 Door Courtesy SW (Driver's Side)
D 7 Door Courtesy SW (Front Passenger's Side)
D10 Door Lock Control SW (Front Passenger's Side)
D13 Door Lock Motor,Door key Lock and Unlock SW (Driver's Side)
D14 Door Lock Motor,Door Key Lock and Unlock SW (Front Passenger's Side)
F 9 Front Speaker LH
F10 Front Speaker RH
F11 Fuel Sender (Main) and Fuel Pump
F12 Fuel Sender (Sub)
H 5 High Mounted Stop Light
I11 Interior Light
J12 Junction Connector
J13 Junction Connector
J14 Junction Connector
J15 Junction Connector
J17 Junction Connector
L 1 License Plate Light
M 2 Moon Root Control Relay
M 3 Moon Roof Control SW
M 6 Moon Roof Motor and Limit SW
P 3 Personal Light
P 4 Power Window Master SW
P 5 Power Window Motor (Driver's Side)
P 6 Power Window Motor (Front Passenger's Side)
P 9 Power Window SW (Front Passenger's Side)
P14 Pretensioner LH
P15 Pretensioner RH
R 8 Rear Combination Light LH
R 9 Rear Combination Light RH
R10 Rear Side Marker Light LH
R11 Rear Side Marker Light RH
R12 Rear Speaker LH
R13 Rear Speaker RH
R14 Rear Window Defogger
R15 Rear Window Defogger
R16 Rear Wiper Motor
R18 Remote Control Mirror LH
R19 Remote Control Mirror RH
R20 Retractor SW
