Check 4WD Shift Indicator Pattern
- Set 4WD shift switch to "2WD", "4H", "4LO", "4H" and "2WD" in order. Stay at each switch position for at least 2 seconds.

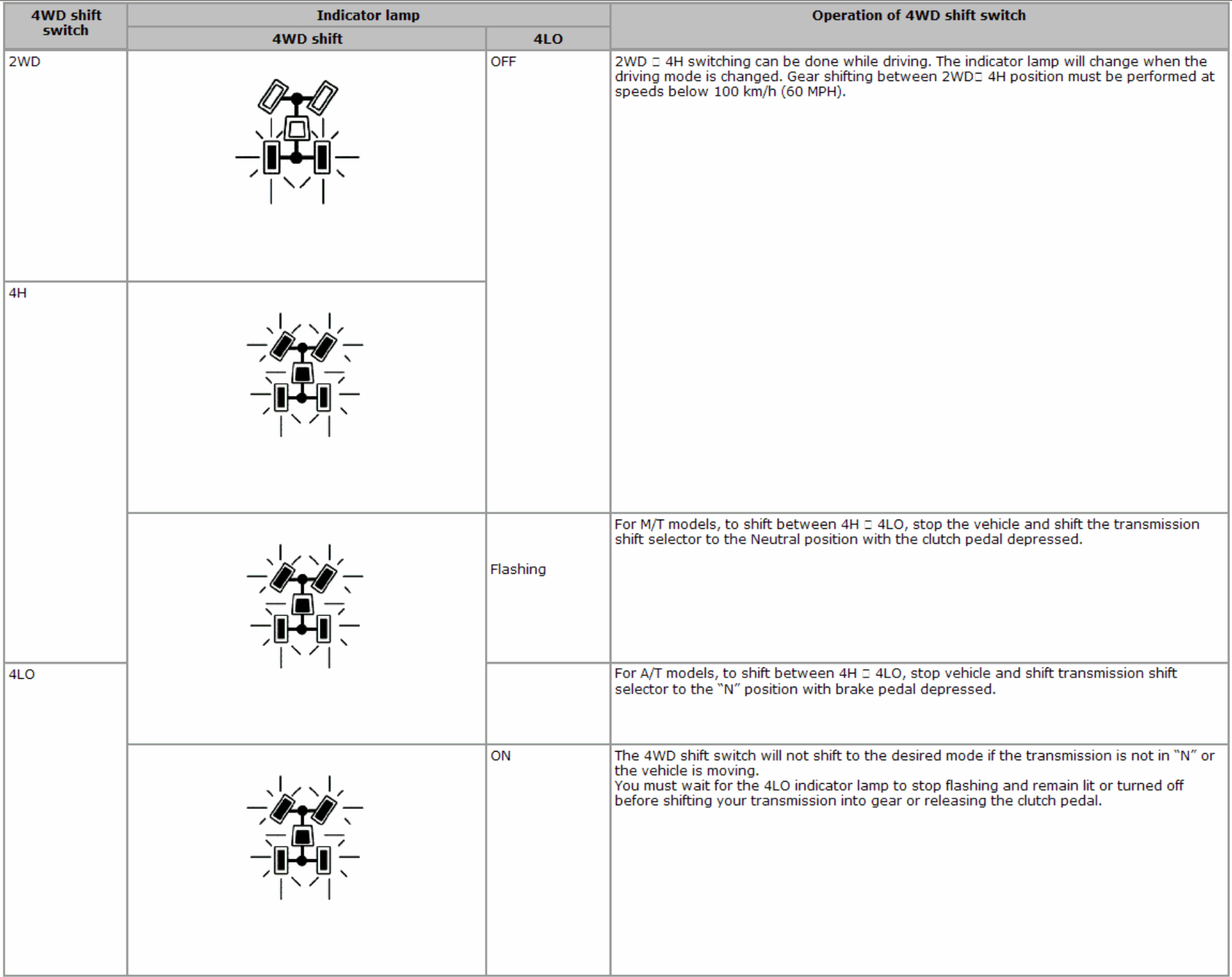

- Confirm 4WD shift indicator lamp and 4LO indicator lamp change properly as follows.
- If OK, the position between transfer assembly and transfer control unit is correct.
- If NG, the position is different between transfer assembly and transfer control unit.
Adjust the position between transfer assembly and transfer control unit. Refer to pattern table below.
Transfer position adjustment pattern
4WD SHIFT SWITCH CONDITION CHART4WD shift switch condition Refer procedure 4WD shift switch is in "2WD" when engine is stopped. "METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT "2WD"" 4WD shift switch is in "4H" or "4LO" when engine is stopped. "METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT "4H" OR "4LO"" NOTE: Method of adjustment can be chosen voluntarily, according to location of 4WD shift switch.
