2005 Suzuki Forenza L4-2.0L
Transmission Position Sensor/Switch: Service and Repair
2005 Suzuki Forenza L4-2.0LSECTION Service and Repair
Park/Neutral Start Switch Removal and Installation
Removal
1. Disconnect the negative battery cable.
2. Disconnect the park/neutral position switch electrical connector.

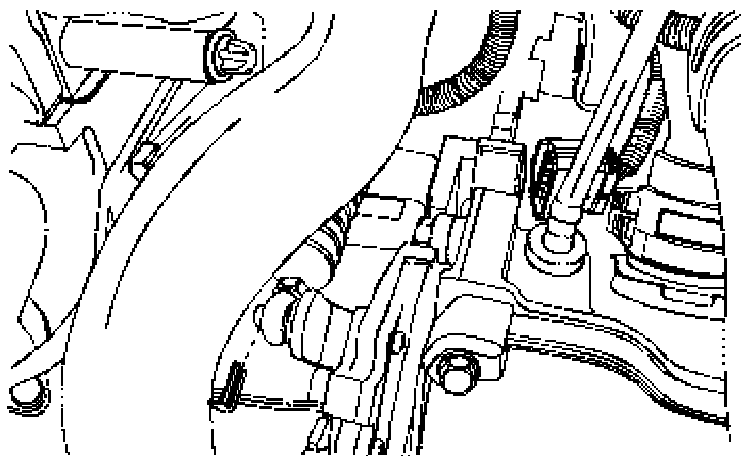

3. Disconnect the shift control cable and the retaining clip.
4. Remove the shift lever nut and the shift lever.

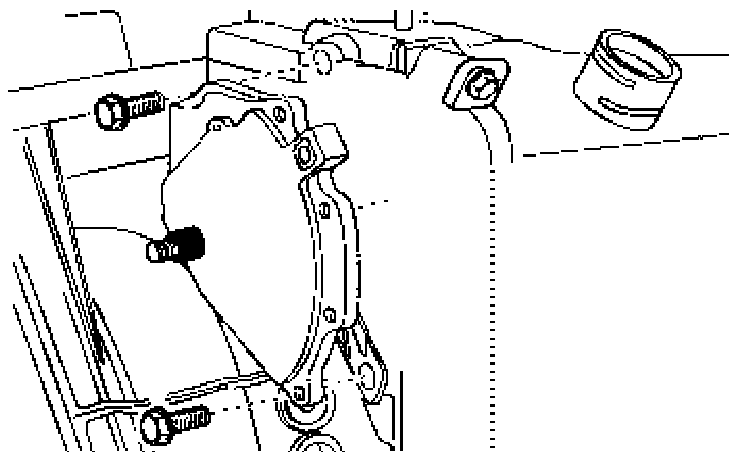

5. Remove the park/neutral start switch.
Installation
Tools Required: DW260-050 P/N Switch Installer
1. Install the park/neutral start switch.
^ Tighten the bolts to 10 Nm (89 inch lbs.).
2. Adjust the park/neutral switch using the P/N switch installer DW260-050.
3. Install the shift lever and the shift lever nut.
^ Tighten the shift lever nut to 10 Nm (89 inch lbs.).
4. Connect the shift control cable and the retaining clip.
5. Connect the park/neutral position switch electrical connector.
6. Connect the negative battery cable.
Removal
1. Disconnect the negative battery cable.
2. Disconnect the park/neutral position switch electrical connector.
3. Disconnect the shift control cable and the retaining clip.
4. Remove the shift lever nut and the shift lever.
5. Remove the park/neutral start switch.
Installation
Tools Required: DW260-050 P/N Switch Installer
1. Install the park/neutral start switch.
^ Tighten the bolts to 10 Nm (89 inch lbs.).
2. Adjust the park/neutral switch using the P/N switch installer DW260-050.
3. Install the shift lever and the shift lever nut.
^ Tighten the shift lever nut to 10 Nm (89 inch lbs.).
4. Connect the shift control cable and the retaining clip.
5. Connect the park/neutral position switch electrical connector.
6. Connect the negative battery cable.
