2005 Suzuki Aerio L4-2.3LFACTORY OEM SERVICE PROCEDURE
Vehicle Speed Sensor: Service and Repair
Vehicle Speed Sensor (VSS) Removal and Installation
Removal
1. Disconnect negative cable at battery.

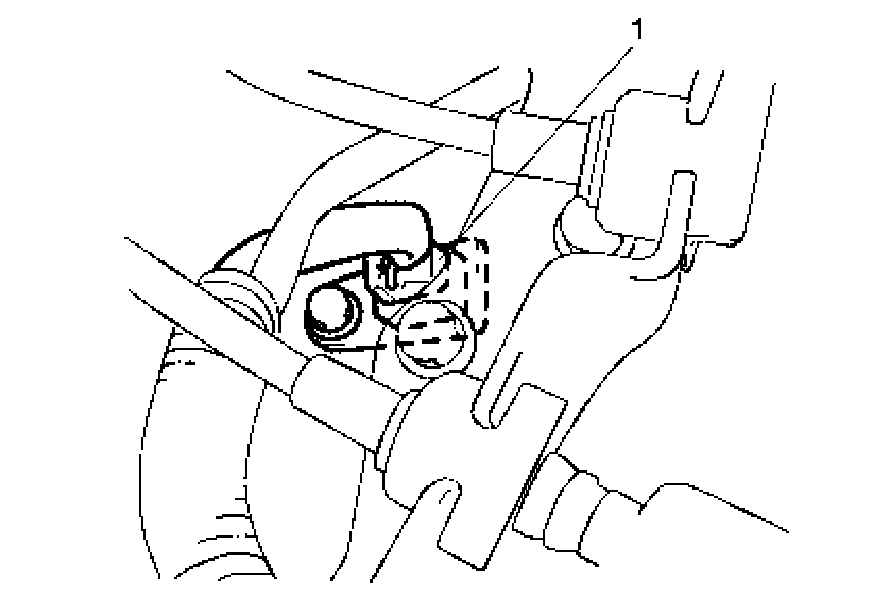

2. Disconnect VSS coupler (1).
3. Remove VSS.
Installation

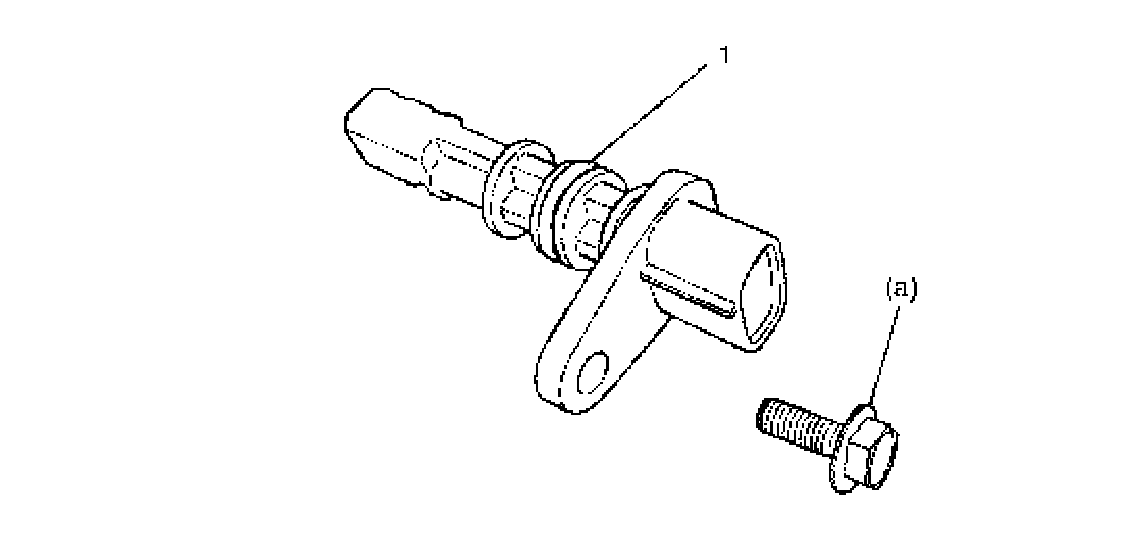

1. Check O-ring (1) and VSS surface for their flawlessness, apply grease to O-ring and then install VSS to transaxle.
Grease 99000-25010
Tightening torque
VSS bolt (a): 5.5 Nm (0.55 kgf-cm, 4.0 ft. lbs.)
2. Connect VSS coupler (1).
3. Connect negative cable at battery.
Removal
1. Disconnect negative cable at battery.

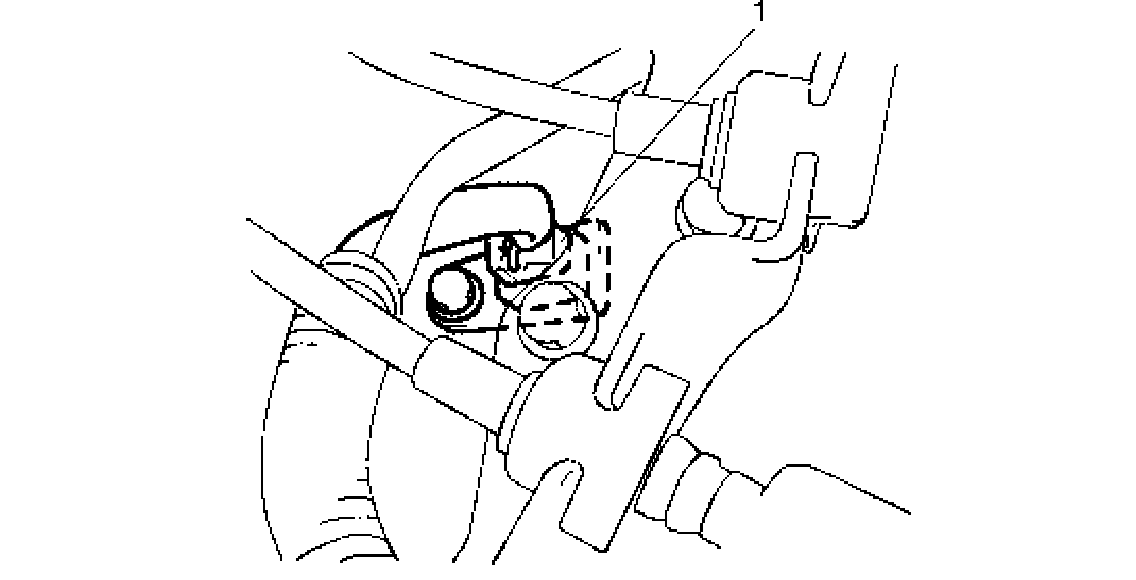

2. Disconnect VSS coupler (1).
3. Remove VSS.
Installation

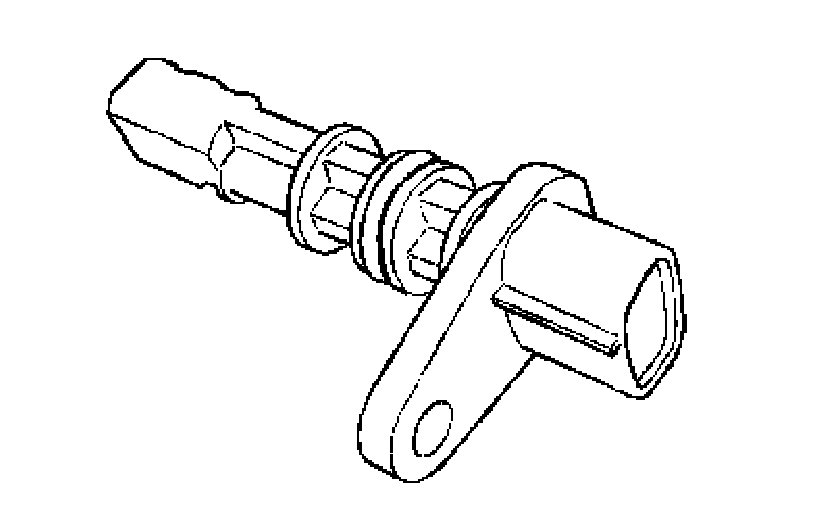

1. Check O-ring (1) and VSS surface for their flawlessness, apply grease to O-ring and then install VSS to transaxle.
Grease 99000-25010
Tightening torque
VSS bolt (a): 5.5 Nm (0.55 kgf-cm, 4.0 ft. lbs.)
2. Connect VSS coupler (1).
3. Connect negative cable at battery.
