2005 Suzuki Aerio L4-2.3LFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor: Service and Repair
Throttle Position (TP) Sensor Removal and Installation
Reference: Throttle Position (TP) Sensor On-Vehicle Inspection
Removal
1. Disconnect battery negative cable at battery.
2. Disconnect coupler from TP sensor.
3. Remove TP sensor from throttle body.
Installation
1. Install TP sensor (1) to throttle body (2).

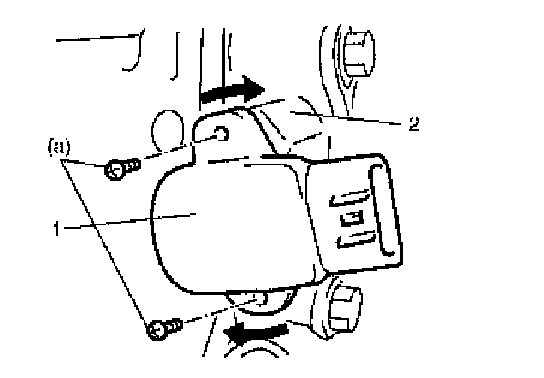

Fit TP sensor (1) to throttle body (2) in such way that its holes are a little away from TP sensor screw holes as shown in the figure and turn TP sensor (1) clockwise so that those holes align.
2. Tighten TP sensor screw to specified torque.
Tightening torque
TP sensor screw a: 2.5 N.m (0.25 kg-m, 1.8 lb-ft)
3. Connect coupler to TP sensor securely.
4. Connect battery negative cable to battery.
Reference: Throttle Position (TP) Sensor On-Vehicle Inspection
Removal
1. Disconnect battery negative cable at battery.
2. Disconnect coupler from TP sensor.
3. Remove TP sensor from throttle body.
Installation
1. Install TP sensor (1) to throttle body (2).
Fit TP sensor (1) to throttle body (2) in such way that its holes are a little away from TP sensor screw holes as shown in the figure and turn TP sensor (1) clockwise so that those holes align.
2. Tighten TP sensor screw to specified torque.
Tightening torque
TP sensor screw a: 2.5 N.m (0.25 kg-m, 1.8 lb-ft)
3. Connect coupler to TP sensor securely.
4. Connect battery negative cable to battery.
