2005 Suzuki Aerio L4-2.3LFACTORY OEM SERVICE PROCEDURE
TCM

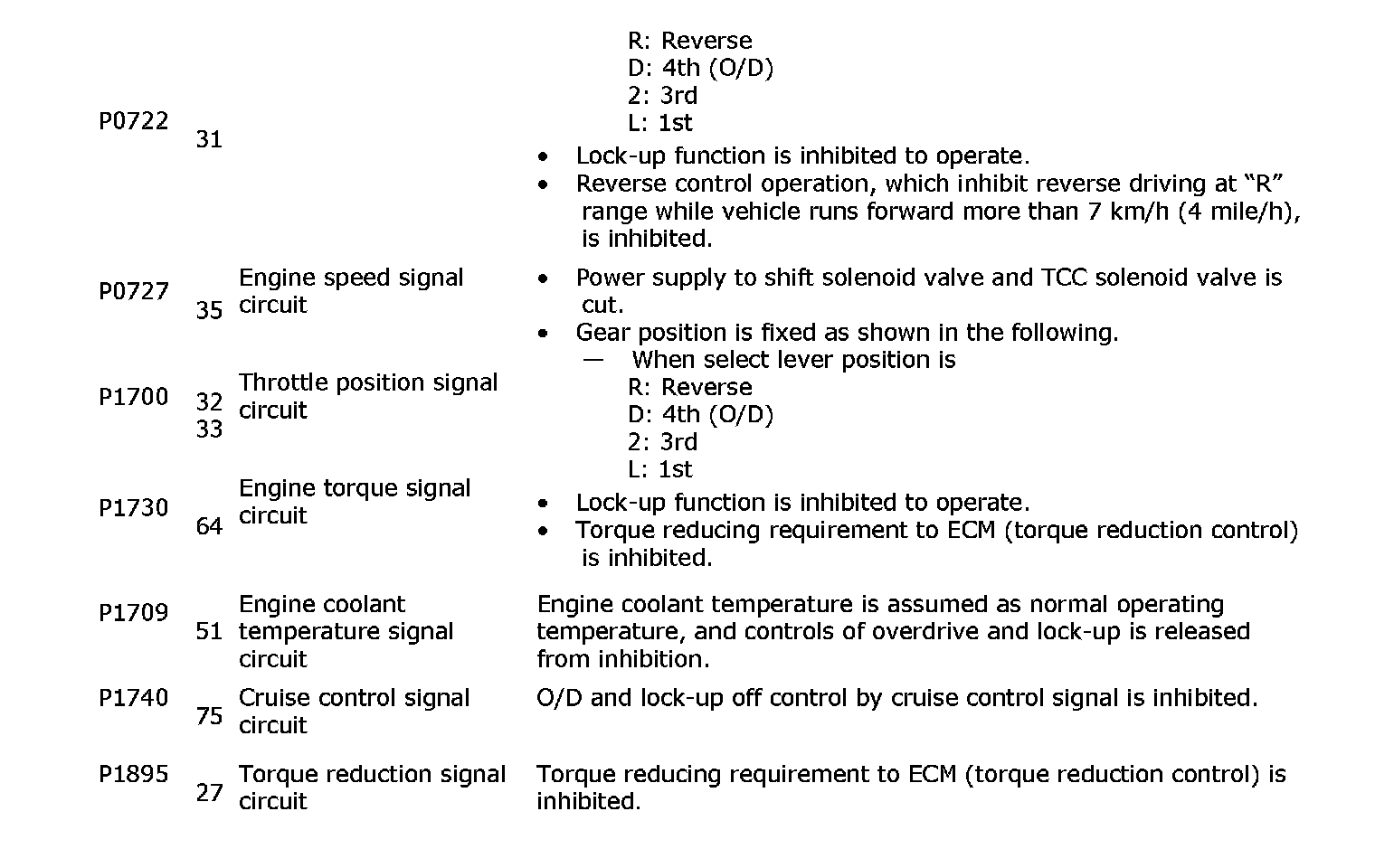

Fail Safe Table
This function is provided by the safe mechanism that assures safe driveability even when the solenoid valve, sensor or its circuit fails. The following table shows the fail safe function for each fail condition of sensor, solenoid, TCM or its circuit.
Part 1 Of 2:
Part 2 Of 2:
This function is provided by the safe mechanism that assures safe driveability even when the solenoid valve, sensor or its circuit fails. The following table shows the fail safe function for each fail condition of sensor, solenoid, TCM or its circuit.
