2005 Suzuki Aerio L4-2.3LFACTORY OEM SERVICE PROCEDURE

ECM

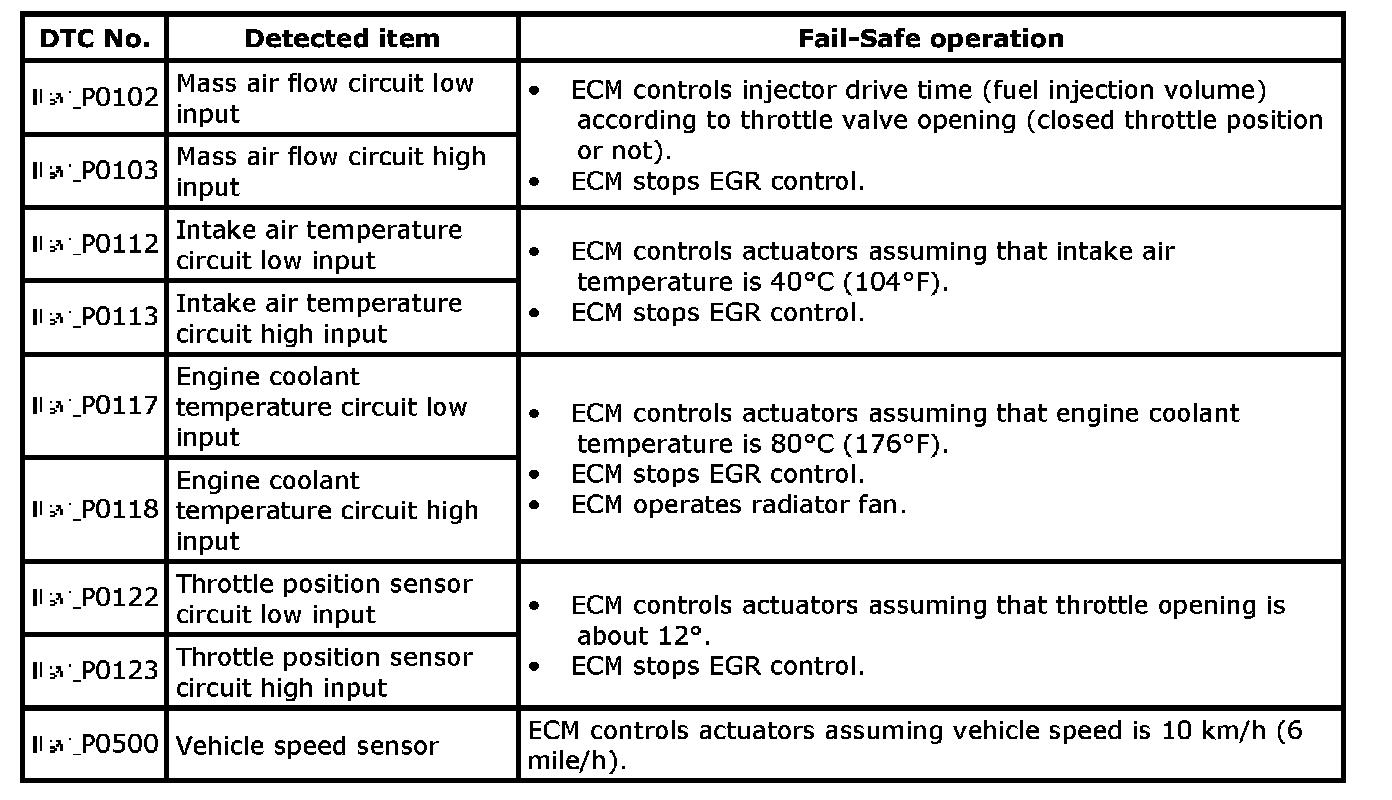

Fail-Safe Table

DTC's P0102 - P0500:

Factory service manual diagram



When any of the following DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.
