2005 Suzuki Aerio L4-2.3LFACTORY OEM SERVICE PROCEDURE
Keyless Entry Transmitter: Testing and Inspection
Programming Transmitter Code
NOTE:
- Three transmitter codes can be programmed at the same time.
- When fourth transmitter code is programmed, the oldest one will be cleared automatically.
If transmitter / door lock controller is replaced with a new one or additional transmitter(s) is necessary, program transmitter code(s).
1. Confirm that all doors are closed and ignition key is out of ignition key cylinder
2. Open driver side door.
3. Turn ignition switch to ON position, and then drawn ignition key from ignition key cylinder within 10 seconds after that.

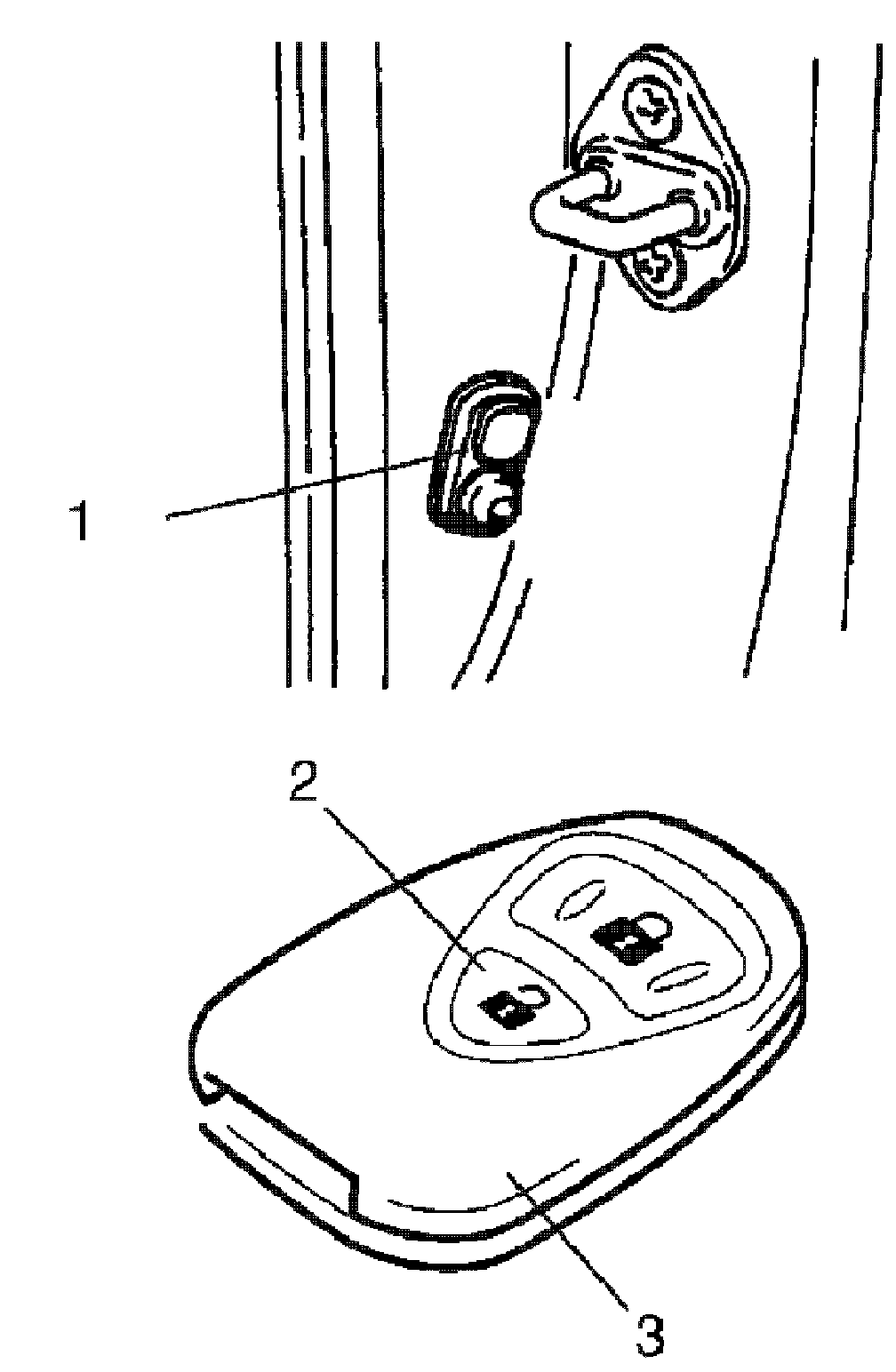

4. Push and release driver side door switch (1) at 3 times by hand within 20 seconds after removing ignition key from ignition key cylinder.
5. Turn ignition switch to ON position, and then drawn ignition key from ignition key cylinder within 10 seconds after that.
6. Confirm that all doors are operated from lock to unlock. With this, registration mode.
7. Push "UNLOCK " button (2) on transmitter (3) and confirm that all doors are operated from lock to unlock. With this, code registration is completed.
8. If you want to program the additional transmitter, repeat the procedure from Step 1 through Step 7.
9. Make sure that keyless entry system properly operates by operating programmed transmitter(s).
NOTE:
- Three transmitter codes can be programmed at the same time.
- When fourth transmitter code is programmed, the oldest one will be cleared automatically.
If transmitter / door lock controller is replaced with a new one or additional transmitter(s) is necessary, program transmitter code(s).
1. Confirm that all doors are closed and ignition key is out of ignition key cylinder
2. Open driver side door.
3. Turn ignition switch to ON position, and then drawn ignition key from ignition key cylinder within 10 seconds after that.
4. Push and release driver side door switch (1) at 3 times by hand within 20 seconds after removing ignition key from ignition key cylinder.
5. Turn ignition switch to ON position, and then drawn ignition key from ignition key cylinder within 10 seconds after that.
6. Confirm that all doors are operated from lock to unlock. With this, registration mode.
7. Push "UNLOCK " button (2) on transmitter (3) and confirm that all doors are operated from lock to unlock. With this, code registration is completed.
8. If you want to program the additional transmitter, repeat the procedure from Step 1 through Step 7.
9. Make sure that keyless entry system properly operates by operating programmed transmitter(s).
