2022 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE

Transmission Case: Installation

  1. Clean the mating surface of transmission case and converter case.
  2. Install the control device system. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Control Device>INSTALLATION .
  3. Install new O-rings to the application pressure pipe, lubrication pipe, and release pressure pipe.
    CAUTION:
    • Before installing O-rings, apply sufficient amount of CVTF to avoid damage and deformation.
    • Use SUBARU genuine CVTF.
    • Be careful not to incorrectly install or fail to install O-rings and other such parts.

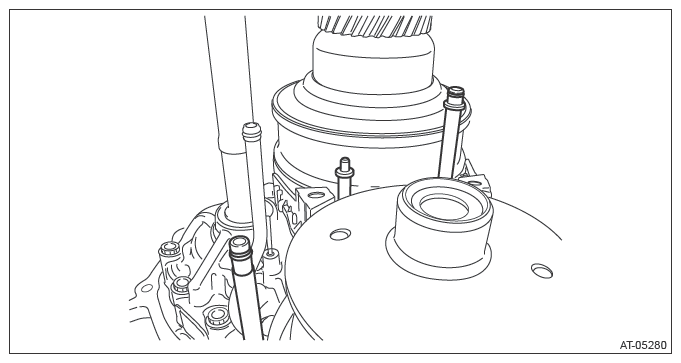

  4. Make sure the application pressure pipe, lubrication pipe, release pressure pipe and support rod are in vertical position.
    G13200231Courtesy of SUBARU OF AMERICA, INC.

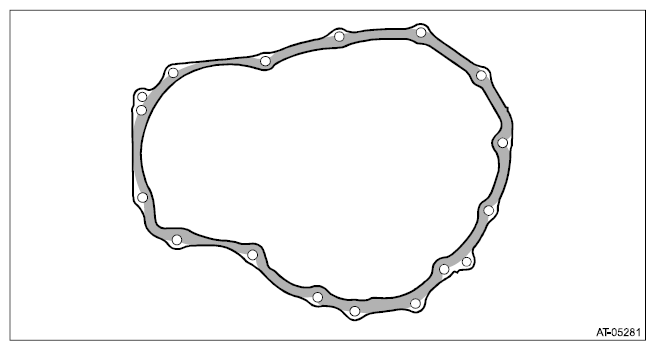

  5. Apply liquid gasket seamlessly to the mating surface of transmission case, and temporarily install it.

    Liquid gasket:

    THREE BOND 1215B or equivalent

    G12452462Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the transmission case mounting bolts.
    CAUTION: If the transmission case gets in contact with the application pressure pipe, lubrication pipe, release pressure pipe and support rod, do not install the transmission case forcibly.
