2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Extension Case: Installation
WARNING: This page is about a different variant/trim than selected.
- Clean the mating surface of the extension case and intermediate case.
- Select the rear drive shaft shim. < Ref. to ADJUSTMENT , Rear Drive Shaft. >
- Select the shim for transfer reduction driven gear. < Ref. to ADJUSTMENT , Transfer Reduction Driven Gear. >
- Install the selected rear drive shaft shims to the rear drive shaft.
- Attach the selected shim to transfer reduction driven gear assembly.

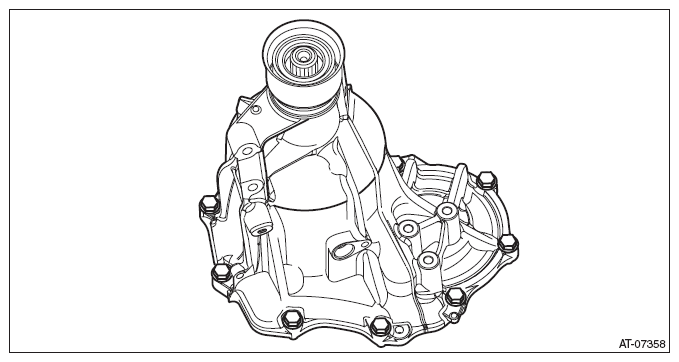

- Install the gasket and the extension case.NOTE: Use a new gasket.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Install the rear wheel speed sensor. < Ref. to INSTALLATION , Rear Wheel Speed Sensor. >
- Install the front wheel speed sensor. < Ref. to INSTALLATION , Front Wheel Speed Sensor. >
- Install the transmission assembly. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
