Engine Controls (Diagnostics) (2.0L) - Introduction: General Description: Caution
- Airbag system wiring harness is routed near the ECM, main relay and fuel pump relay.CAUTION:
- Do not use electrical test equipment on the airbag system circuits.
- Be careful not to damage the airbag system wiring harness when servicing the ECM, TCM, main relay and fuel pump relay.
- Never connect the battery in reverse polarity. Doing so will damage the ECM instantly, and other parts will also be damaged.
- Do not disconnect the battery terminals while the engine is running. A large counter electromotive force will be generated in the generator, and this voltage may damage electronic parts such as ECM etc.
- When disconnecting the connectors of the electrical components, always be sure to turn the ignition switch to OFF. Perform the Clear Memory Mode after connecting the connectors. < Ref. to CLEAR MEMORY MODE . >

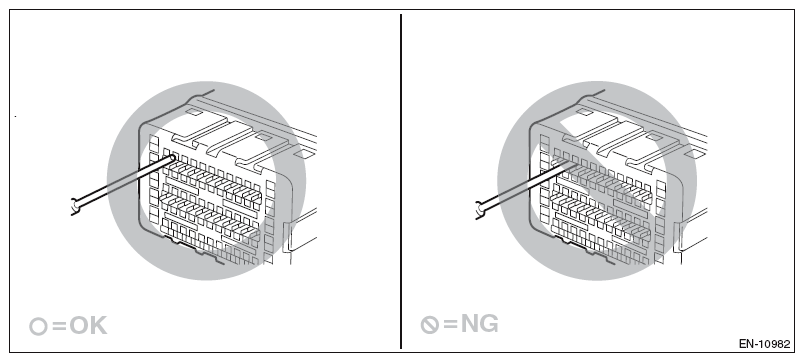

- When measuring the voltage or resistance of individual sensor or all electrical control modules, use a tapered pin with a diameter of 0.6 mm (0.024 in) or less and touch it to the tip of terminal.Fig 1: Caution - When Measuring Voltage Or Resistance Of Individual Sensor Or All Electrical Control Modules, Use Tapered Pin With Diameter
Courtesy of SUBARU OF AMERICA, INC.

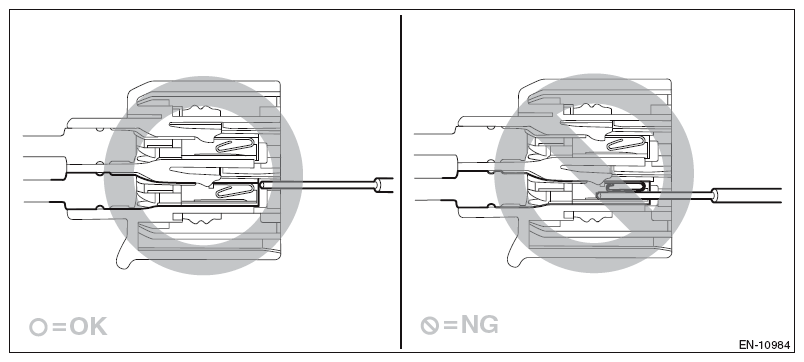

Never insert the tapered pin into the terminal because it deforms inside which may lead to a malfunction.
