2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Drive Cycle O
| DTC | Item | Condition |
|---|---|---|
| P0441 | Evap System (CPC) Incorrect Purge Flow | - |
Diagnostic procedure:
WARNING:
When performing drive cycle O on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.

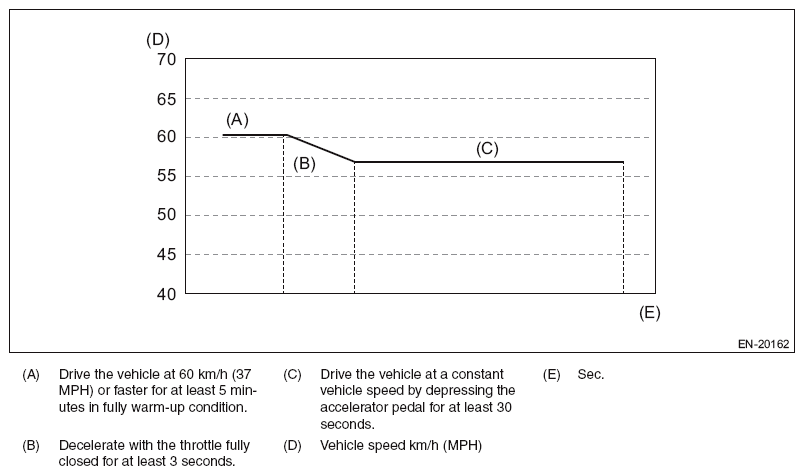

- Drive according to the drive pattern described below.
- Park the vehicle on a safe place.NOTE: Driving method while vehicle is driven to a stop at safe place is not restricted.
- With the vehicle idling, read the temporary diagnostic code of DTC using Subaru Select Monitor or general scan tool.NOTE:
- For detailed operation procedures, refer to "Read Diagnostic Trouble Code (DTC)". < Ref. to READ DIAGNOSTIC TROUBLE CODE (DTC) . >
- In the step 3), if the DTC is not displayed on the Subaru Select Monitor or general scan tool display screen, the trouble is resolved.
