DTC	Item	Condition
P0096	Intake Air Temperature Sensor 2 Circuit Range/Performance Bank 1	6 hours have elapsed since ignition switch is OFF under a completely warmed up condition. For models with block heater, at least 6 hours must have elapsed without operating the block heater.
P0111	Intake Air Temperature Sensor 1 Circuit Range/Performance Bank 1	6 hours have elapsed since ignition switch is OFF under a completely warmed up condition. For models with block heater, at least 6 hours must have elapsed without operating the block heater.

Diagnostic procedure:

With the ignition switch ON (engine stopped), read the value in «Coolant Temp.» and «IAT Sensor #11». < Ref. to DISPLAY CURRENT ENGINE DATA , OPERATION, Subaru Select Monitor. >
If the values from step 1) satisfy the following conditions, idle the engine for two minutes or more.
Condition:

|Engine coolant temperature - Intake air temperature| ≤ 5°C (9°F)
NOTE:
- If the conditions are not satisfied, turn the ignition switch to OFF and wait until the parameters are satisfied.
- For CVT models, hold the select lever to "P" range or "N" range at idling, and for MT models, the shift lever in the neutral position at idling.
Drive according to the drive pattern described below.

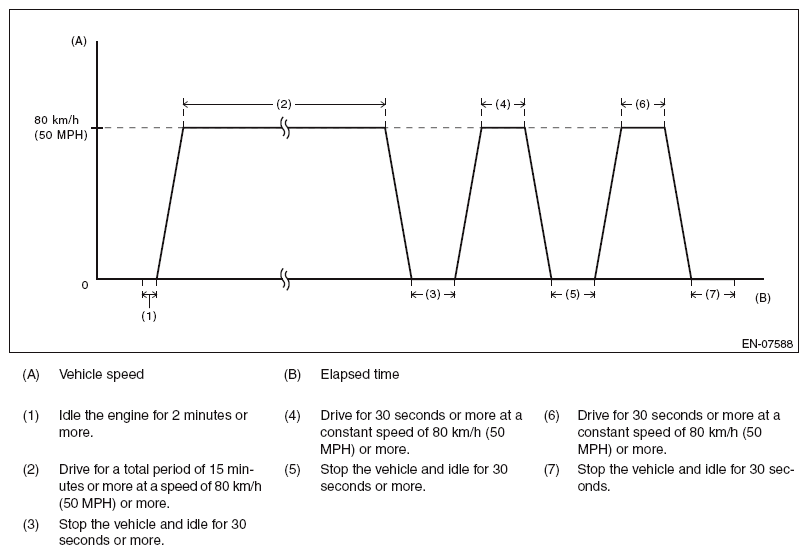

Fig 1: Driving Pattern (Drive Cycle F)
Courtesy of SUBARU OF AMERICA, INC.
