2013 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE

Combination Base Switch Assembly: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's airbag module. < Refer to REMOVAL , Driver's Airbag Module. >
  2. Remove the steering wheel. < Refer to REMOVAL , Steering Wheel. >
  3. Remove the screws and remove the steering column cover lower.
    Fig 1: Locating Steering Column Cover Lower Screw
    G05957752Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness cover lock.
  5. Remove the screws and detach the knee protector.

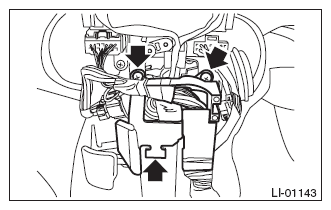

    Fig 2: Locating Knee Protector Screws
    G08542325Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the screws and remove the steering column upper cover.

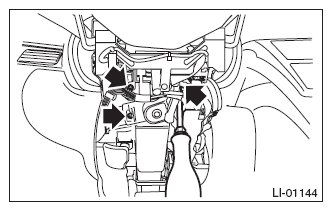

    Fig 3: Removing Steering Column Cover Upper Screws
    G08542326Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the screws, and then remove the roll connector.

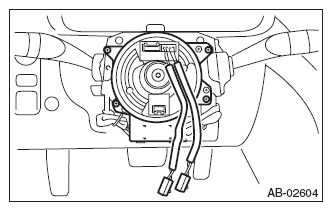

    Fig 4: Identifying Roll Connector
    G08542327Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the screws, disconnect the harness connector and remove the combination base switch assembly.

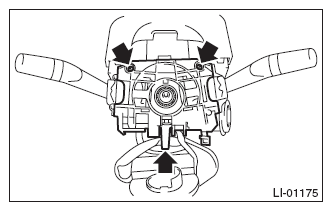

    Fig 5: Locating Combination Base Switch Assembly Screws
    G08566232Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the combination switch from the combination base switch assembly.
    • Combination switch (light): < Refer to REMOVAL , Combination Switch (Light). >
    • Combination switch (wiper): < Refer to REMOVAL , Combination Switch (Wiper). >
