2012 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Transfer Reduction Driven Gear: Installation

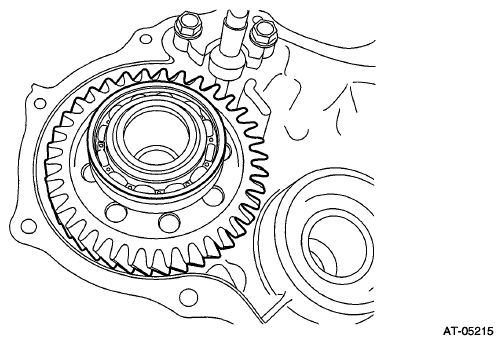

- Install the reduction driven gear assembly.
- Select shims. Refer to , ADJUSTMENT , Transfer Reduction Driven Gear.
- Mount the selected shim onto ball bearing.
- Install the transfer clutch assembly. Refer to , INSTALLATION , Transfer Clutch.
- Install the extension case. Refer to , INSTALLATION , Extension Case.
- Install the transmission assembly to the vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
