2012 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Transfer Clutch: Installation

  1. Apply vaseline to the seal ring and attach it to the seal ring groove of transfer clutch assembly.
    NOTE:
    • Use a new seal ring.
    • When installing the seal ring, do not expand the seal ring too much.

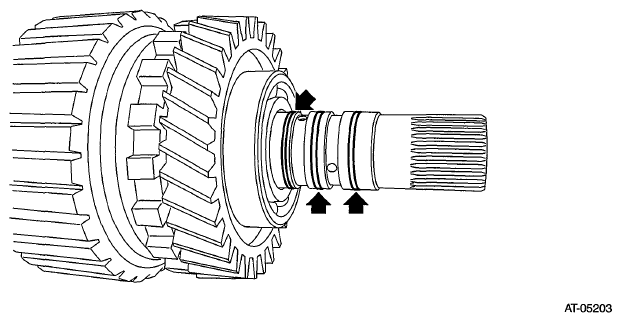

      Fig 1: Locating Seal Ring On Transfer Clutch Assembly (View 2 Of 2)
      G06654512Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer clutch assembly.

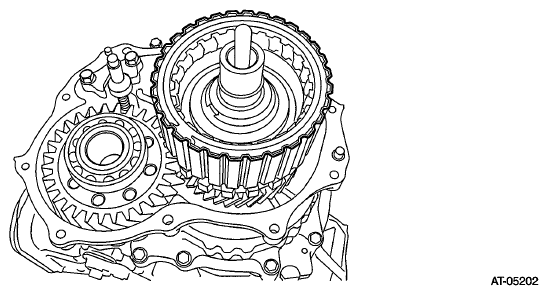

    Fig 2: Identifying Transfer Clutch Assembly
    G06654511Courtesy of SUBARU OF AMERICA, INC.
  3. Select the thrust needle bearing. Refer to , ADJUSTMENT , Rear Drive Shaft.
  4. Install the selected thrust needle bearing and needle bearing to transfer clutch assembly.
    NOTE: Install the thrust needle bearing in the correct direction.
