Select Cable: Installation
- Install the select cable to plate assembly.
- Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)Â
- Install the select cable to range select lever.

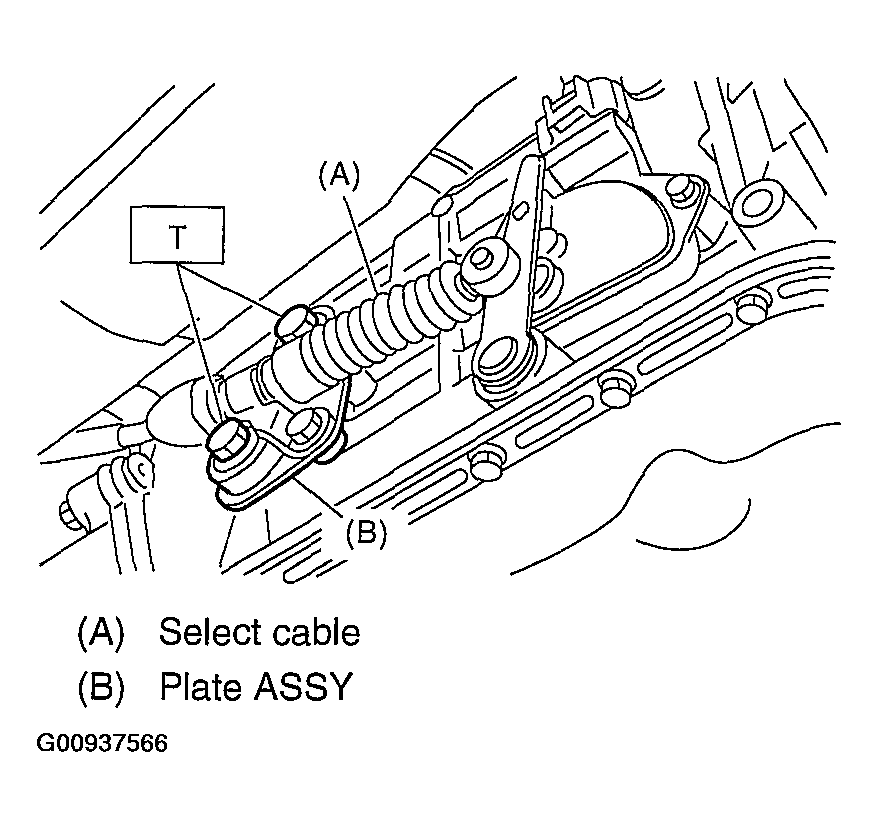

- Install the plate assembly to transmission.
- Tightening torque: T: 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)Â

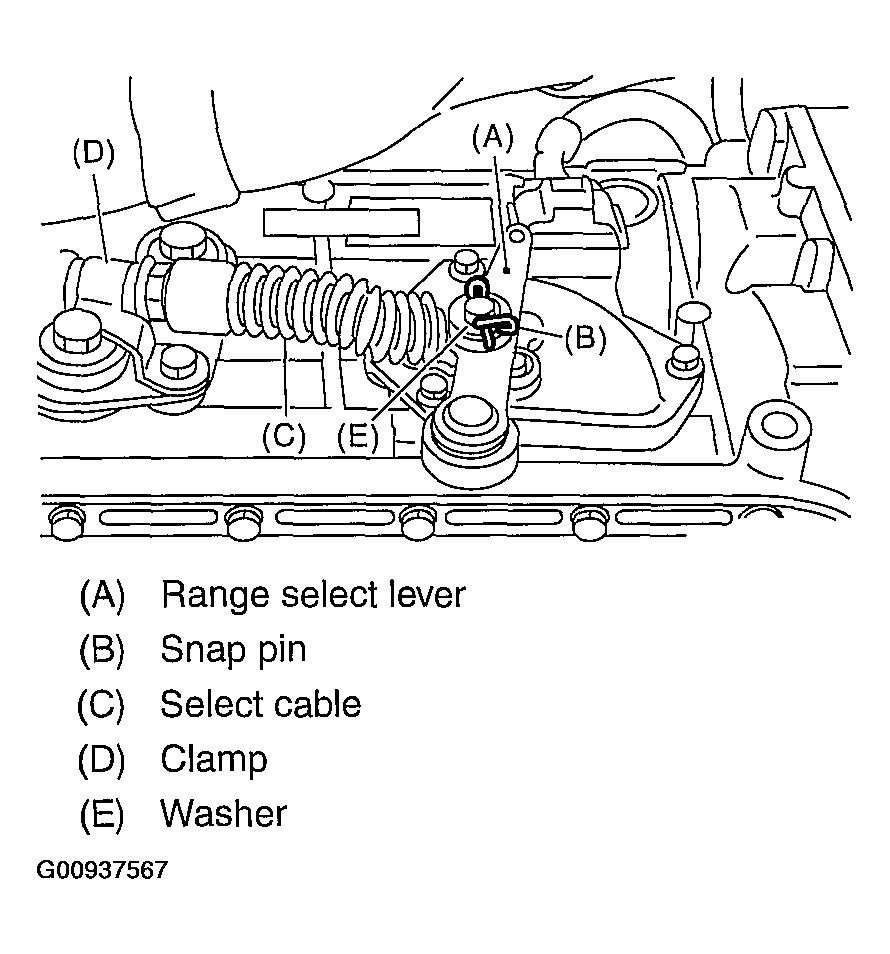

- Install the washer and snap pin to range select lever.
- Move the select lever to "N" range, then adjust the select cable position.< Ref. to ADJUSTMENTÂ . >
- Install the heat shield cover. (If equipped)
- Install the front and center exhaust pipe.
Non-turbo modelÂ
< Ref. to REMOVAL , Front Exhaust Pipe . >
Turbo modelÂ
< Ref. to INSTALLATION , Front Exhaust Pipe . >
