2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE
Select Cable: Adjustment
- Set the vehicle on a lift.
- Set the select lever to "N" range.
- Lift-up the vehicle.
- Remove the rear exhaust pipe and muffler.
- Remove the heat shield cover. (If equipped)

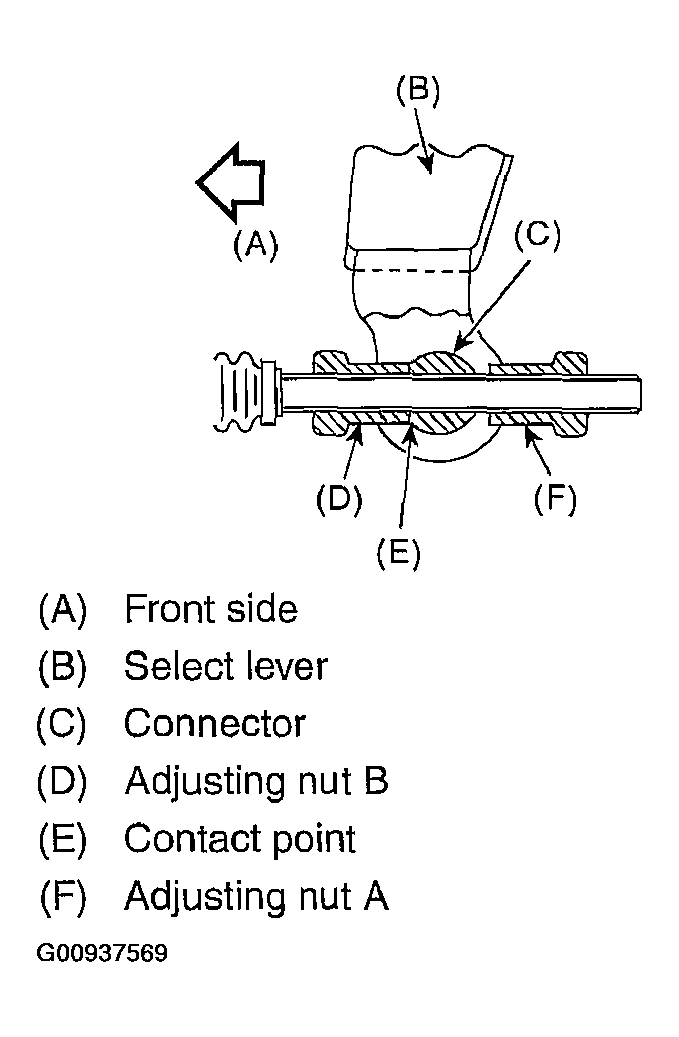

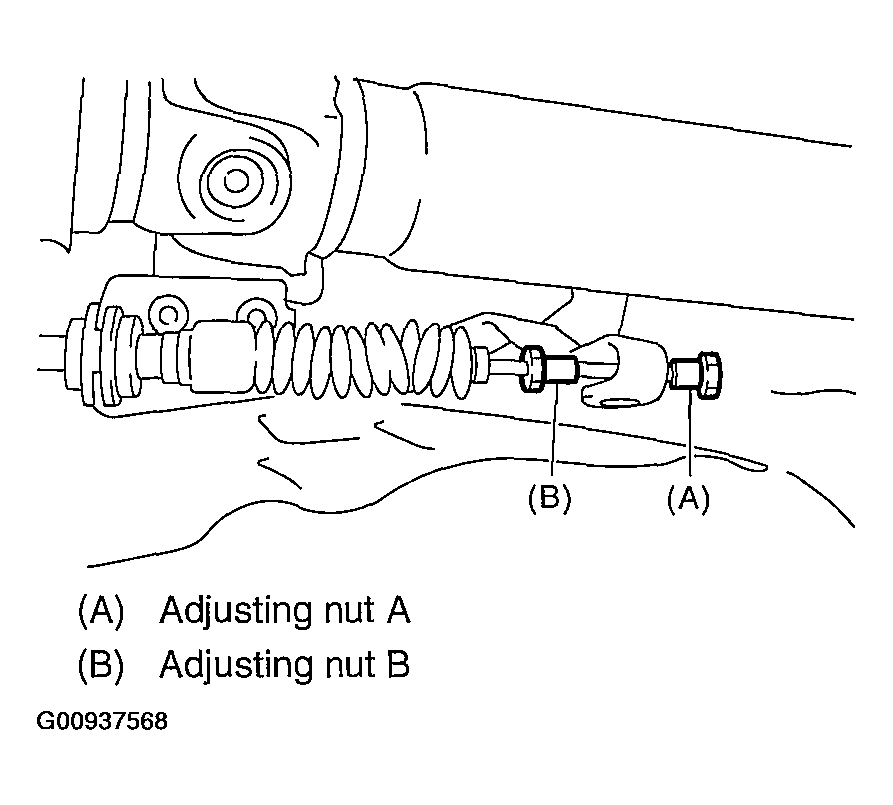

- Loosen the adjusting nut on each side.
- Turn the adjusting nut B until it lightly touches the connector.

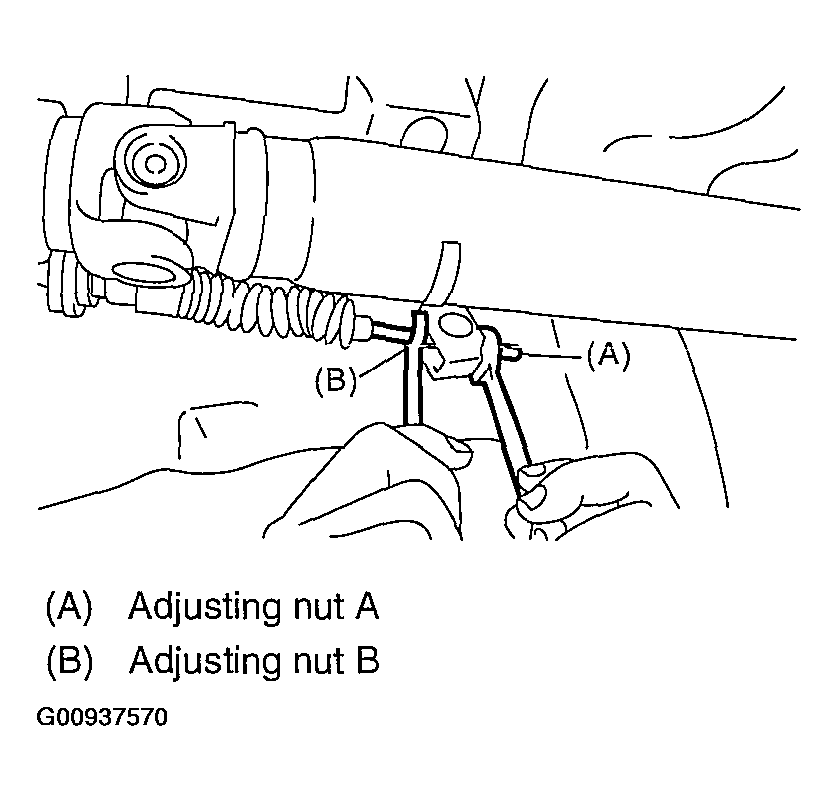

- While preventing the adjusting nut B from moving with a wrench, tighten the adjusting nut A.
- Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
- After completion of fitting, make sure that the select lever operates smoothly all across the operating range.
- Install in the reverse order of removal.
